Select the cutting arrangement around the pipe wall, cut face and line speed.
Plan chip-free pipe cutting for your material and dimensions. Review ring and fixed-length arrangements, pipe support, length control and cut-face inspection.
Chip-free pipe cutting separates the extruded pipe without a conventional chip-producing saw cut. The range includes ring-type, multifunction and fixed-length arrangements, with custom units configured for a defined cutting task. Selection should connect pipe material and wall thickness with the intended cut face and the speed of the extrusion line.
Define what an acceptable cut looks like before selecting the machine. Length, squareness, end deformation and the pipe support arrangement affect whether a cut section is ready for the next operation. The cutting sequence must also suit the upstream haul-off and downstream handling.
Design And Function
What The Machine Does On Your Line
01
Pipe-focused cutting options
Compare the cutting arrangements for the intended pipe range. Different geometries and materials can require different blade motion, support and clamping.
02
Fixed-length production
Define the requested cut lengths and the method used to measure product travel. Include short and long sections that must be handled by the same arrangement.
03
Cut-face requirements
Specify the inspection criteria for the pipe end rather than relying on the term chip-free alone. Material and wall behavior should be evaluated in a trial.
A custom fixed-length arrangement can be reviewed for HDPE, PP, PPR and PE-RT pipe. Confirm the selected cutter for the actual pipe and run conditions.
Existing extrusion-line upgrades
Check the retained haul-off, travel measurement and pipe supports before defining the cutter connection.
Selection
Points To Settle Before You Specify
Settle these points first and the quotation you receive can be compared line by line.
01
Pipe and cut range
Provide outside diameter, wall thickness, material and cut-length range. These values determine the cutting and handling task.
02
Length and end quality
Define the measurement method and acceptance limits for length, squareness and deformation. Evaluate these together at the required operating speed.
Line Interfaces
Connecting It To The Rest Of Your Line
Upstream signals
Confirm speed or travel measurement, trigger signals and the operating sequence with the haul-off.

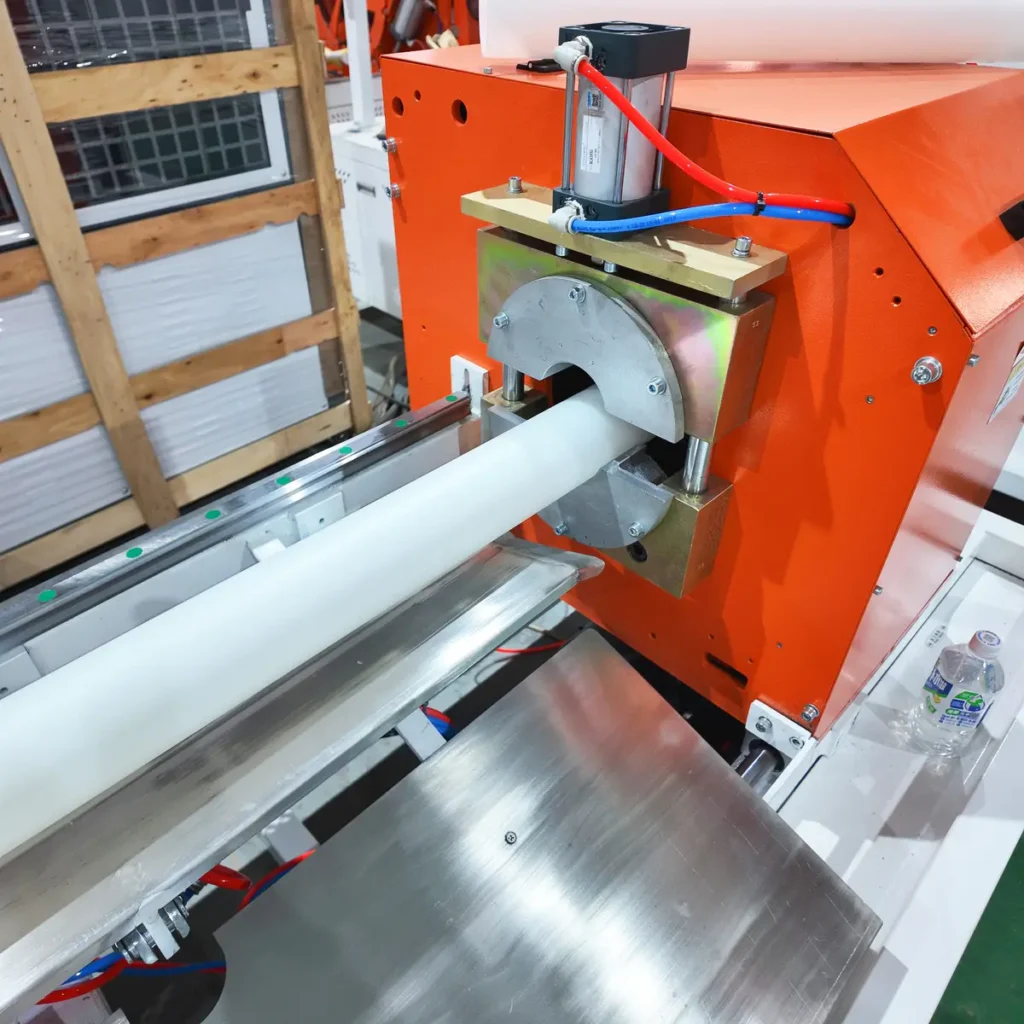

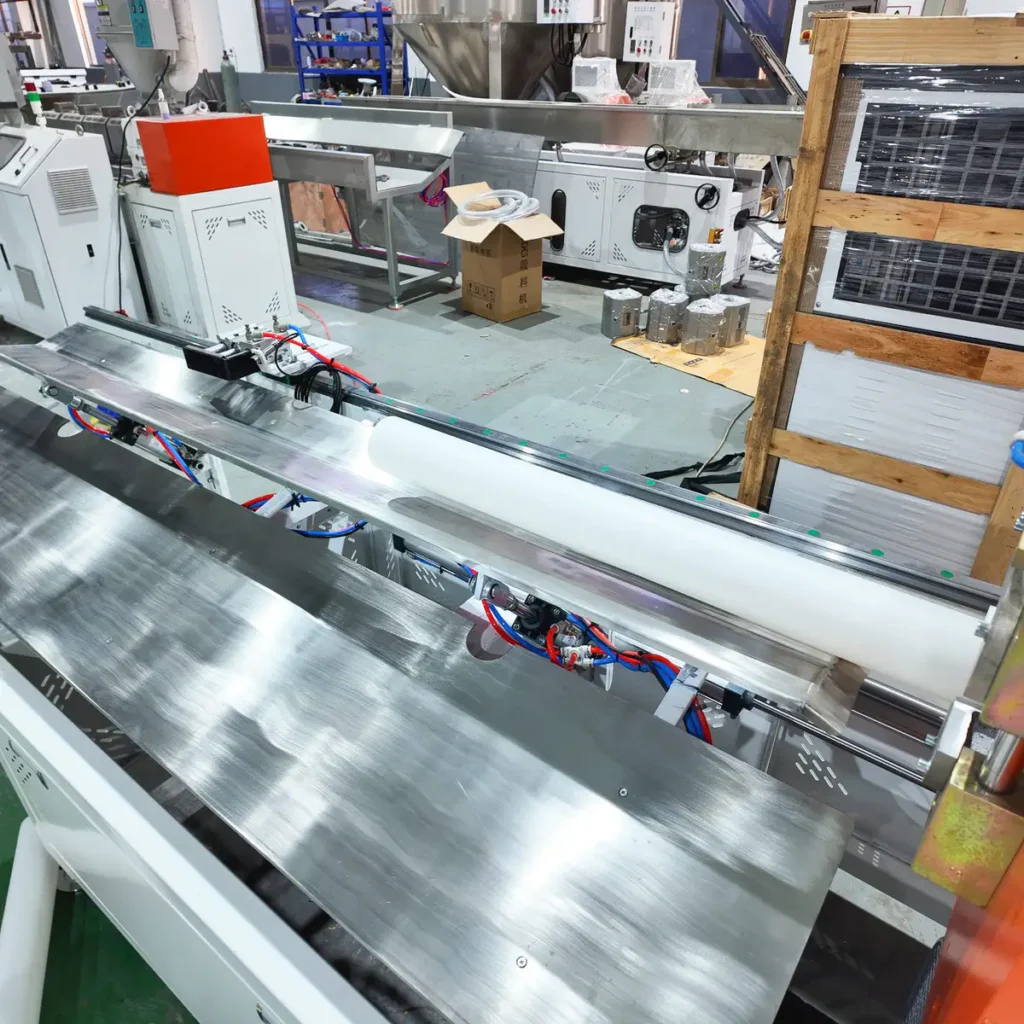

Pipe support and unloading
Specify entry support, exit support and the handling of the shortest and longest cut sections.
QTech-Machinery supplied a complete Φ20–Φ110 mm HDPE pipe extrusion line for a customer producing PE water supply pipes. The project was developed for stable medium-capacity production,...
Watch this video to see a complete Φ20–Φ110 mm HDPE pipe extrusion line supplied by QTech-Machinery for PE100 water supply pipe production. The line includes automatic feeding, SJ75/33 extrusion, color stripe co-extrusion, vacuum calibration, spray cooling, servo haul-off, cutting, winding, and stacking.
It is a practical reference for customers looking for a reliable HDPE pipe extrusion line manufacturer in China.
Discover how QTech-Machinery's cutting-edge PVC pipe extrusion line enhances production efficiency and quality. Designed for water supply pipes ranging from Φ110mm to Φ315mm, this advanced solution offers superior performance, energy savings, and compliance with international standards. Watch to learn how we can transform your manufacturing capabilities.
A complete HDPE pipe extrusion line is not just one extruder. It is a coordinated production system that includes material feeding, drying, extrusion, co-extrusion, die tooling, vacuum calibration, cooling, haul-off, cutting, winding or stacking, electrical control, spare parts, and technical documents. For manufacturers planning to produce PE100 water supply pipes, irrigation pipes, cable protection pipes, […]
PVC extrusion is a manufacturing process that transforms raw PVC resin into durable, dimensionally accurate pipes using specialized machinery. Below, we explore this process in detail and highlight how QTech-Machinery’s advanced PVC pipe extrusion line offers unmatched efficiency and precision. 1. What is PVC extrusion? PVC extrusion is a process used to create continuous profiles, […]
Need an answer for your own material or product? Ask Maggie directly.
Does chip-free mean every pipe will have a perfect cut?
The result depends on the material, wall geometry, blade condition, support and settings. Agree measurable cut-quality criteria and check representative samples.
Can one cutter handle a wide diameter range?
Its usable range depends on the cutting mechanism, clamping and change parts. List all required pipe sizes and wall thicknesses.
What information is needed for retrofit?
Send the pipe specification, line speed, cut lengths, center height, space available and the existing length-measurement and haul-off control details.
Configuration Request
Discuss Your Chip-Free Pipe Cutting Machine Configuration
Tell us what you need to produce, the required output and whether this is a new installation or a replacement. Share the information you already have so we can review the next configuration details with you.
