What is PVC extrusion and how does the process work?

PVC extrusion is a manufacturing process that transforms raw PVC resin into durable, dimensionally accurate pipes using specialized machinery. Below, we explore this process in detail and highlight how QTech-Machinery’s advanced PVC pipe extrusion line offers unmatched efficiency and precision.

1. What is PVC extrusion?

PVC extrusion is a process used to create continuous profiles, such as pipes, by melting and shaping raw PVC material.

PVC extrusion involves feeding raw PVC resin into a heated barrel, where it is melted and pushed through a die to form the desired shape. This process ensures uniformity and structural integrity. QTech-Machinery’s twin screw extruder, equipped with Siemens motors, ensures consistent output and high-quality plasticization.

2. What are the key components of a PVC extrusion line?

The main components include the extruder, pipe moulds, vacuum calibration table, haul-off machine, and cutting system.

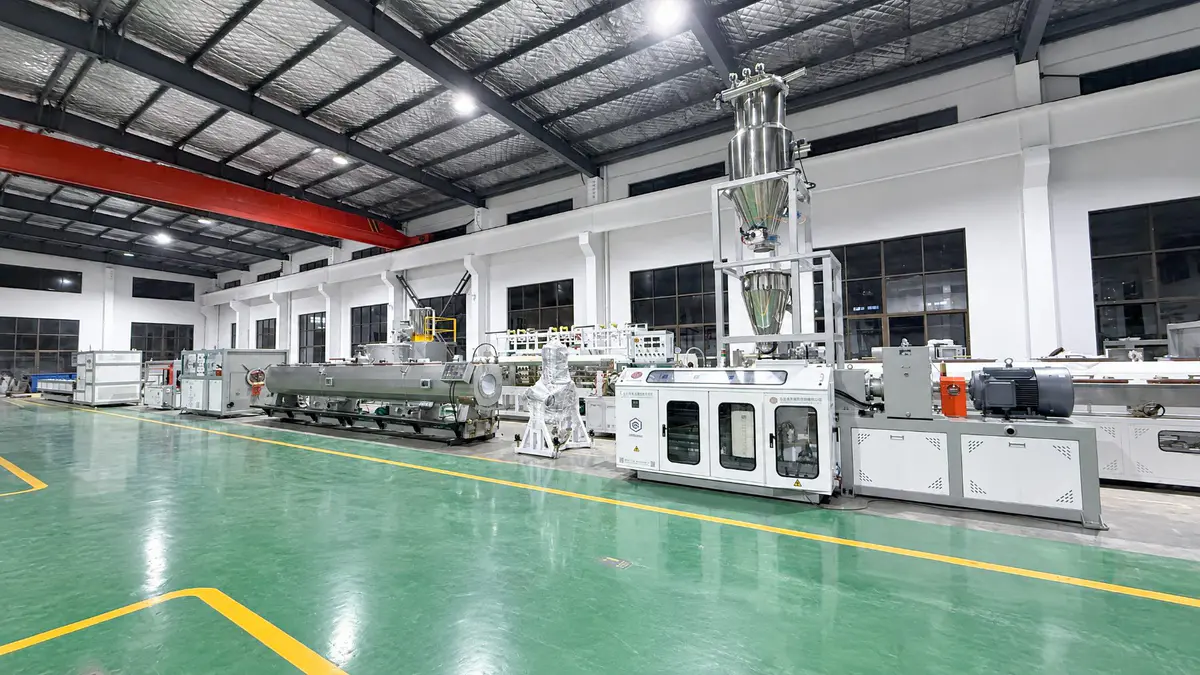

A complete PVC extrusion line consists of:

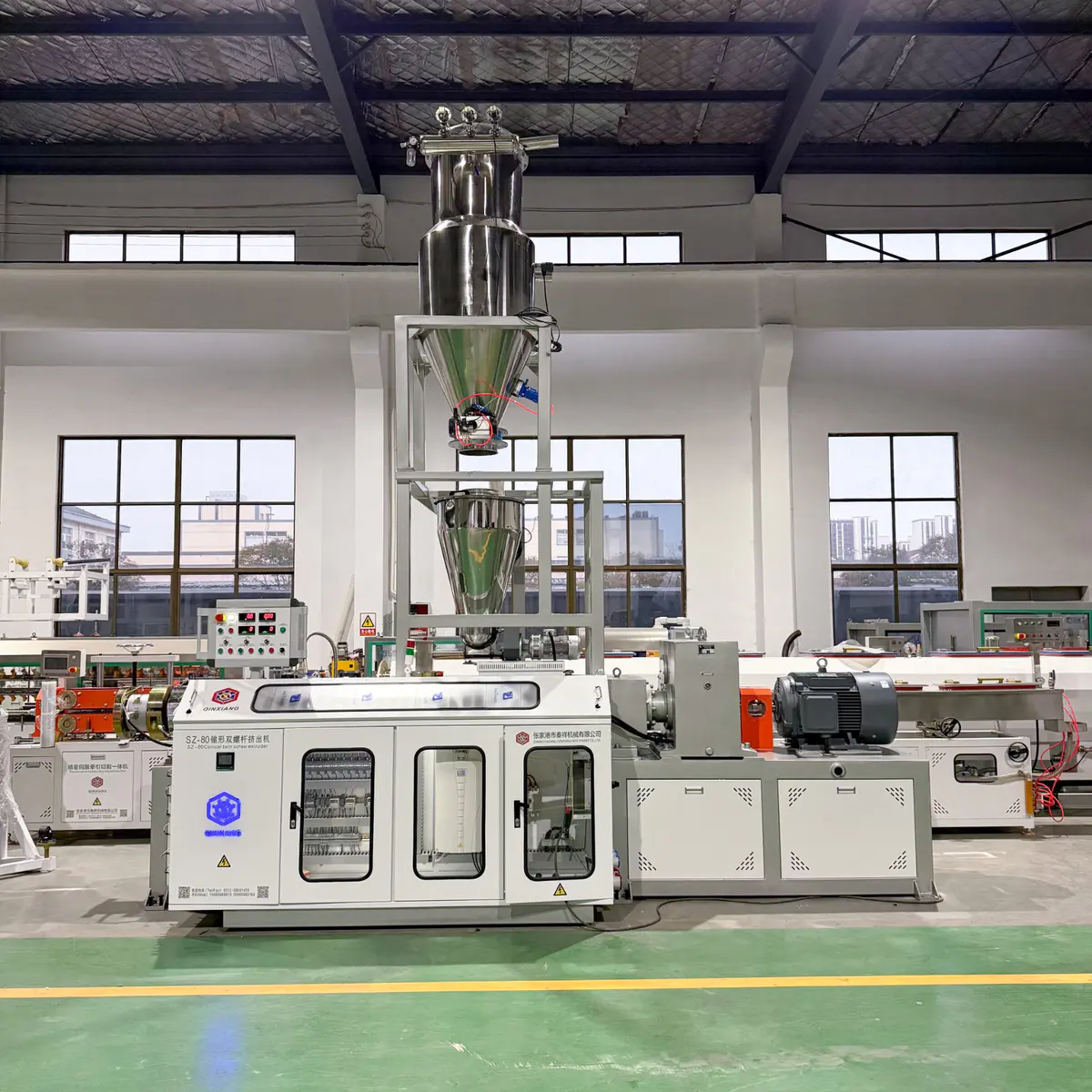

• Twin Screw Extruder: Ensures high output and material homogeneity.
• Pipe Moulds: Chrome-plated to provide precise dimensions.

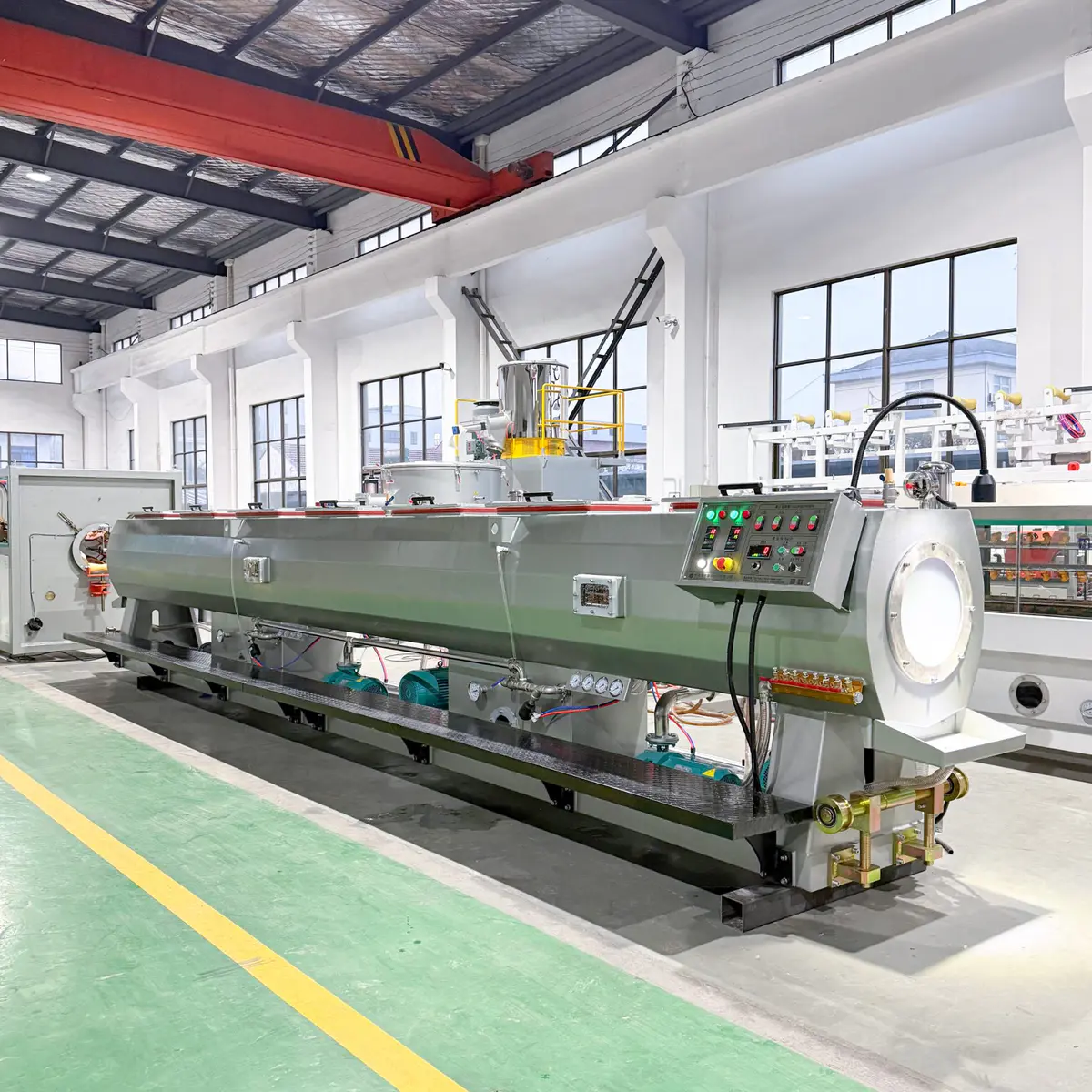

• Vacuum Calibration Table: Maintains accurate cooling and pipe shape.

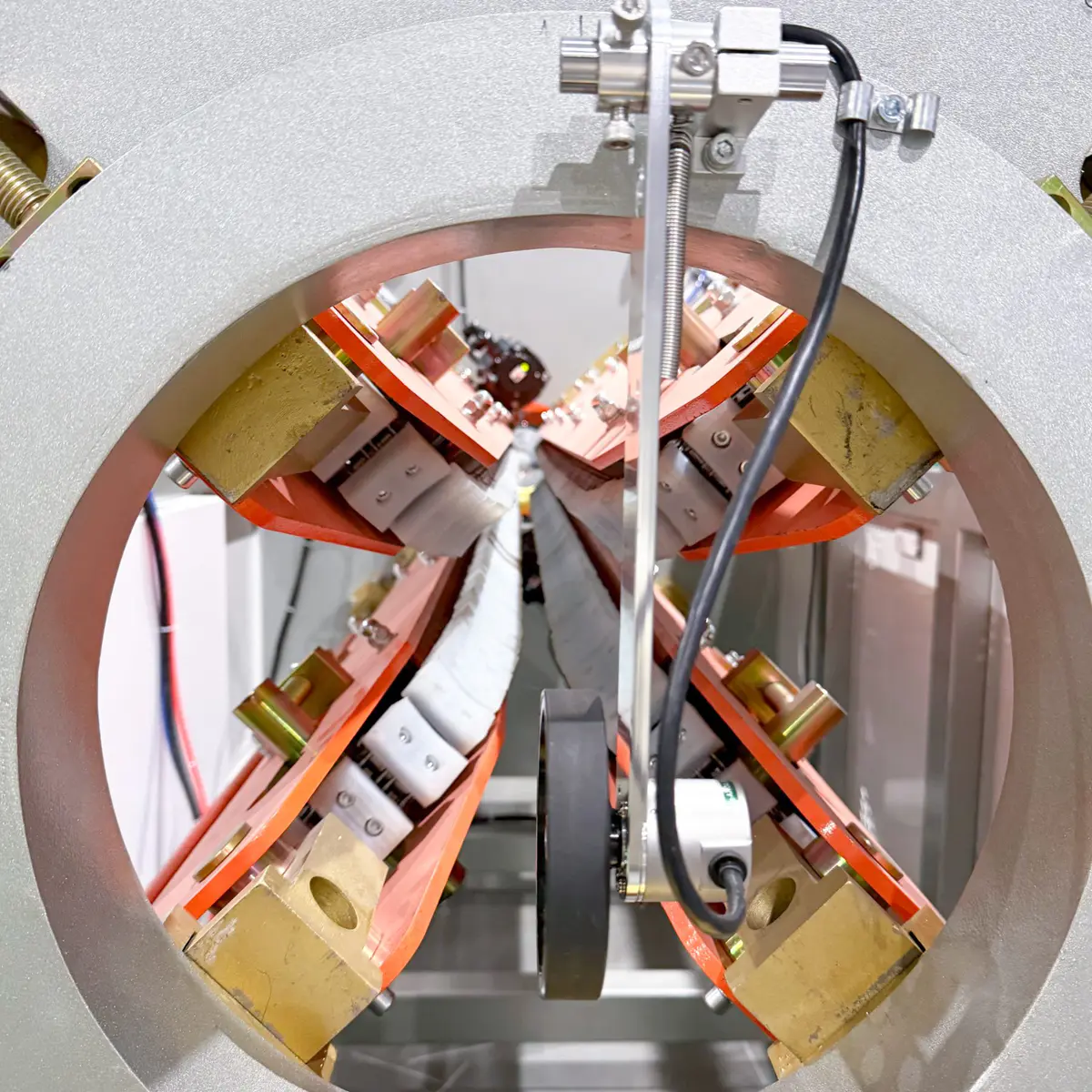

• Haul-off Machine: Ensures smooth movement of pipes.

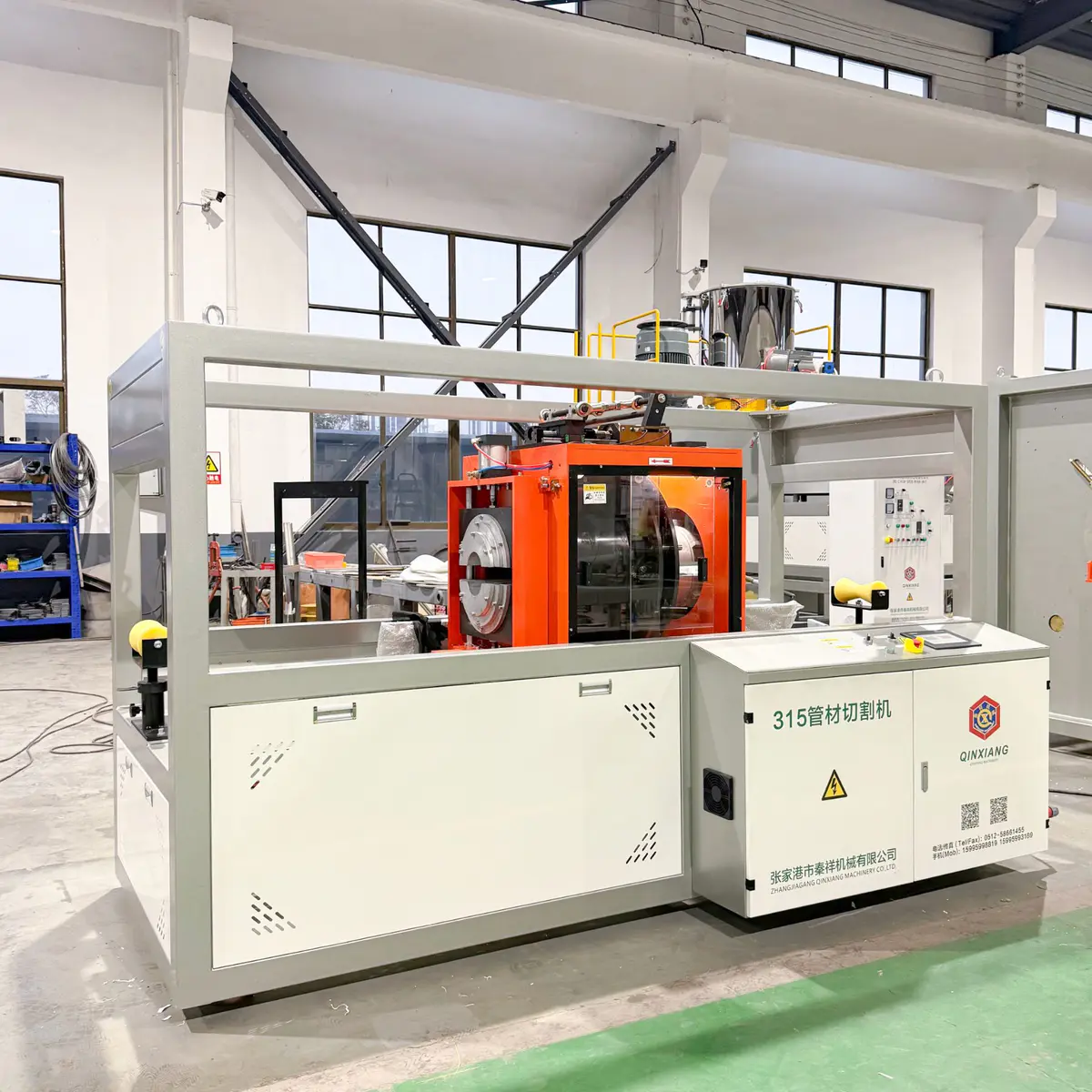

• Chipless Cutter: Provides precise cuts for varying pipe thicknesses.
  QTech-Machinery’s system integrates these components seamlessly with automation, reducing labor and operational costs.

3. How does the extrusion process ensure pipe quality?

Quality is ensured through controlled heating, precision moulding, and advanced cooling systems.

The extrusion process relies on maintaining precise temperatures and pressures to ensure uniformity. QTech-Machinery’s vacuum calibration table provides dual-circuit water cooling, ensuring consistent pipe dimensions and surface finish. Additionally, the chrome-plated moulds guarantee a ±0.05mm wall thickness tolerance.

4. What are the energy-saving advantages of PVC extrusion lines?

Modern extrusion lines use energy-efficient motors, heaters, and insulation to minimize energy usage.

QTech-Machinery’s extrusion lines are equipped with Siemens motors, ABB inverters, and mica-based thermal insulation. These features reduce energy consumption by up to 30%, making the system both eco-friendly and cost-effective.

5. How to choose the right PVC pipe extrusion line for my factory?

Consider pipe size, material, production capacity, and automation features when choosing a system.

Selecting the right extrusion line involves analyzing your production requirements, including pipe diameter, material type, and desired output capacity. QTech-Machinery offers customizable solutions, including plant layout simulations and ROI analyses, to help clients make informed decisions.

6. What are the maintenance requirements for optimal performance?

Regular inspection and calibration of key components ensure long-term performance.

To maintain optimal performance, QTech-Machinery recommends monthly screw wear inspections, quarterly vacuum pump calibrations, and annual system diagnostics using IoT monitoring tools. These practices can extend the machine’s lifespan to over 15 years.

7. What industries benefit from PVC pipe extrusion lines?

Industries like water supply, agriculture, and construction rely heavily on PVC pipes.

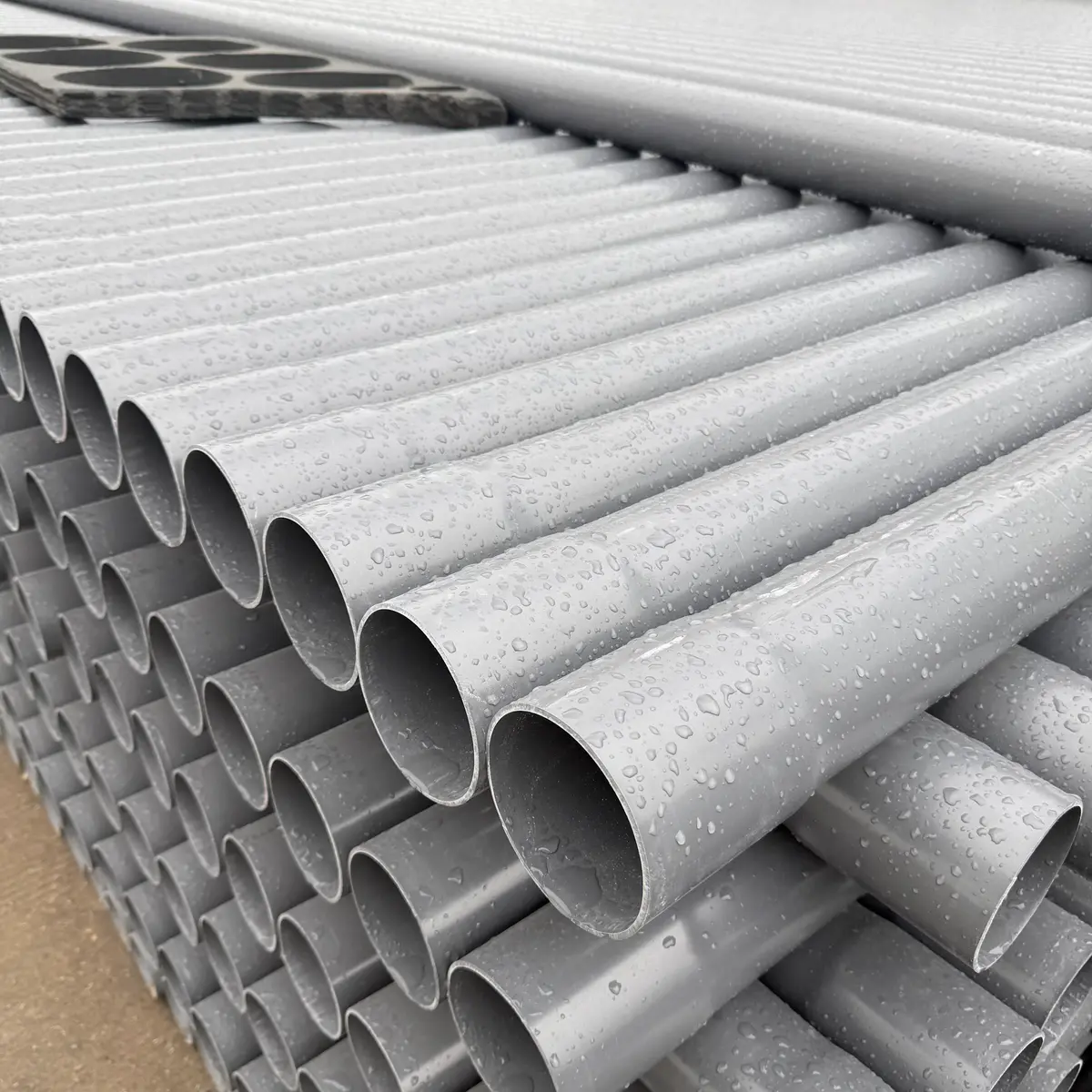

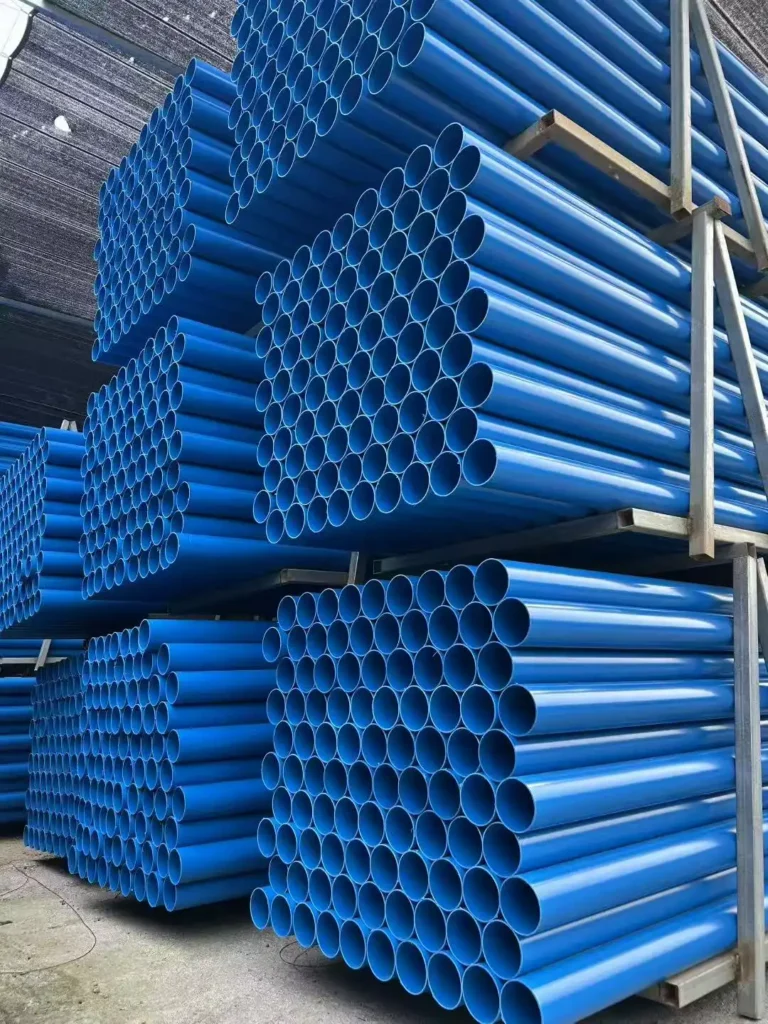

PVC pipes are widely used in water supply systems, agricultural irrigation, and construction projects due to their durability, cost-effectiveness, and resistance to corrosion. QTech-Machinery’s extrusion lines are tailored for these applications, ensuring high-speed production and reduced waste.

8. How does QTech-Machinery’s extrusion line stand out?

QTech-Machinery offers precision engineering, energy efficiency, and seamless automation.

QTech-Machinery’s extrusion line is designed with advanced features like real-time torque monitoring, servo-driven components, and CE-certified electrical systems. These innovations ensure high-quality output, reduced operational costs, and compatibility with global standards.

Table: Key Components of QTech-Machinery PVC Pipe Extrusion Line

Steps for Choosing the Right PVC Pipe Extrusion Line

1. Define your production needs: Identify pipe sizes, materials, and output requirements.
2. Assess energy efficiency: Choose systems with optimized motors and heaters.
3. Evaluate automation level: Select systems with PLC control and servo-driven components for reduced labor.
4. Request customization: Work with manufacturers like QTech-Machinery for tailored solutions.
5. Review manufacturer support: Ensure post-sales services like maintenance and spare parts availability.

Product and Documentation List Provided by QTech-Machinery

Products:

• Conical Twin Screw Extruder (SJSZ80/156)
• Chrome-plated Pipe Moulds
• Vacuum Calibration Table (8m cooling length)
• Four-claw Haul-off Machine
• Servo-controlled Chipless Cutter

Documentation:

• Operation Manual
• Maintenance Guidelines
• IoT Monitoring Setup Guide
• Warranty Certificate
• System Customization Plans

Client Case Study

QTech-Machinery recently collaborated with a client in Southeast Asia to implement a customized PVC pipe extrusion line for water supply infrastructure. The project involved producing pipes with diameters ranging from Φ160mm to Φ315mm, achieving a 20% reduction in energy costs and a 30% increase in production efficiency.
Read the full case study here.
