How to choose the right tumbler straw extrusion line?
Choosing the right tumbler straw extrusion line is not only about buying an extruder. It is about matching material, straw size, output, cooling, cutting, finishing, automation, and supplier support with your real production needs.
For reusable tumbler straw production, especially for drinkware brands, the line must handle small-diameter tube extrusion with stable sizing and clean finishing. Based on QTech-Machinery’s THERMOS reusable tumbler straw extrusion line project, this guide explains how to evaluate a complete line before purchasing.

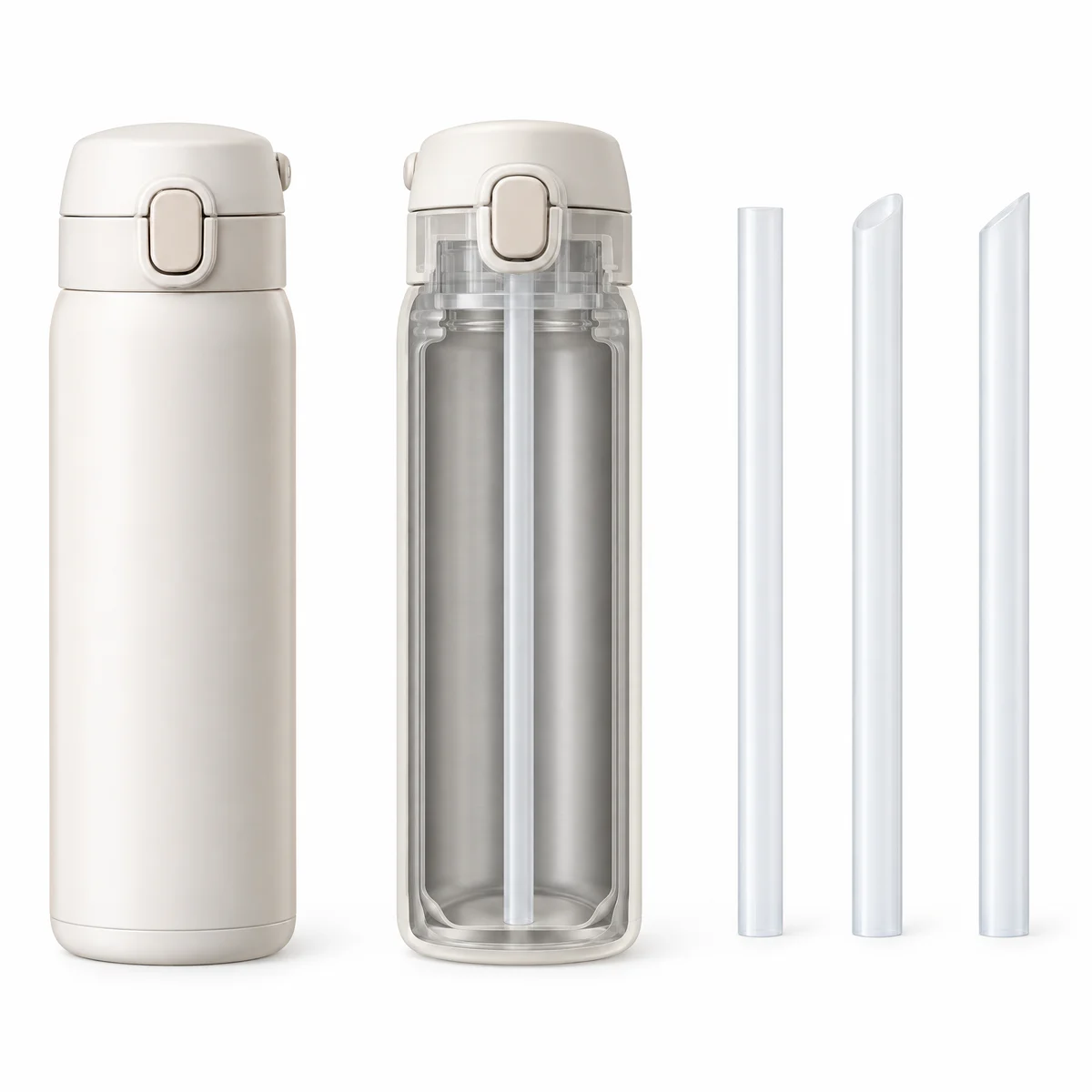

1. What products do you plan to make with the tumbler straw extrusion line?
Choose the line according to your final straw application, straw size, material, and finishing requirements.
A tumbler straw extrusion line is mainly used to produce reusable plastic straws for insulated tumblers, sports bottles, drinkware cups, and reusable beverage containers. These products may look simple, but their production requires stable tube extrusion and accurate downstream control.
Before choosing a line, you should define:
- Straw outer diameter and inner diameter
- Straw length
- Wall thickness
- Material type
- Required output
- Cutting accuracy
- End finishing method
- Whether chamfering is needed
- Whether V-shape opening is required

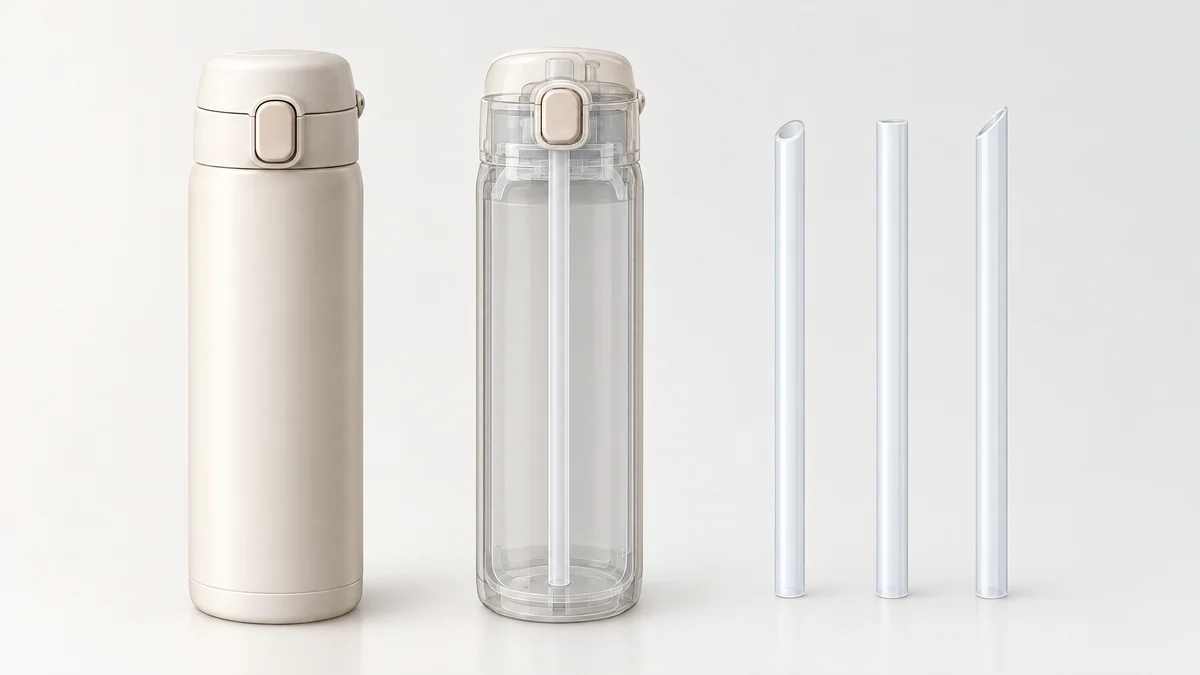

For example, in the THERMOS reusable tumbler straw extrusion line project, the customer needed a customized production line for reusable tumbler straws made from LLDPE and PCT materials. The target products included straw sizes such as 8 × 6 mm and 9.5 × 7.5 mm.
This type of product requires more than a standard plastic pipe extrusion machine. The line must combine a suitable single screw extruder, customized straw die, vacuum calibration, cooling, servo haul-off cutting, chamfering, and opening equipment.
Key product factors to confirm
| Item | What to confirm | Why it matters |
|---|---|---|
| Application | Tumbler straw, cup straw, bottle straw | Determines size, finishing, and material |
| Material | LLDPE, PCT, or other plastic | Affects screw design, temperature, and output |
| Size | OD, ID, wall thickness | Determines die and calibration design |
| Length | Fixed straw length | Affects cutting system selection |
| End finishing | Chamfering, V-shape opening | Affects downstream equipment |
| Capacity | kg/h or pieces/hour | Affects extruder size and line speed |
QTech-Machinery’s advantage is that we do not only provide one standalone machine. We design the line according to the customer’s actual straw product, from raw material feeding to finished straw processing.
Useful internal links:
2. Which material should your tumbler straw extrusion line process?
Select the extrusion line based on the plastic material’s melting behavior, flow stability, cooling needs, and end-use requirements.
Reusable tumbler straws can be made from different plastic materials. In the THERMOS project, the line was configured for LLDPE and PCT. These two materials have different processing characteristics, so the extrusion system must be properly designed and tested.
LLDPE is commonly used where flexibility and toughness are needed. PCT is often selected for applications requiring higher clarity, durability, or performance in drinkware-related products. Because each material behaves differently during melting, forming, cooling, and cutting, the extrusion line should not be selected only by machine size.
The extruder screw, heating zones, die design, cooling tank, haul-off speed, and cutting system all need to match the material.
Material selection comparison
| Material | Common reason for use | Important line requirement |
|---|---|---|
| LLDPE | Flexible, tough, suitable for reusable straw tubes | Stable extrusion and controlled cooling |
| PCT | Durable, suitable for drinkware-related applications | Precise temperature and forming control |
| Other plastics | Depends on customer formula | Requires material test and customized design |
For small-diameter straw extrusion, material flow stability is especially important. Any instability may lead to:
- Diameter fluctuation
- Uneven wall thickness
- Poor roundness
- Cutting deformation
- Rough straw ends
- Higher rejection rate
Professional extrusion communities often discuss the importance of melt stability, die design, cooling control, and downstream synchronization in plastic extrusion. The Society of Plastics Engineers’ extrusion resources also emphasize that extrusion troubleshooting often involves checking material, screw, die, cooling, and downstream pulling together rather than treating them as separate problems. See the SPE extrusion resources here: SPE Extrusion Division.
QTech-Machinery’s advantage is that we can configure the line according to the customer’s material. For a project similar to THERMOS, we can review the material, straw size, and production target before recommending the extruder and downstream equipment.

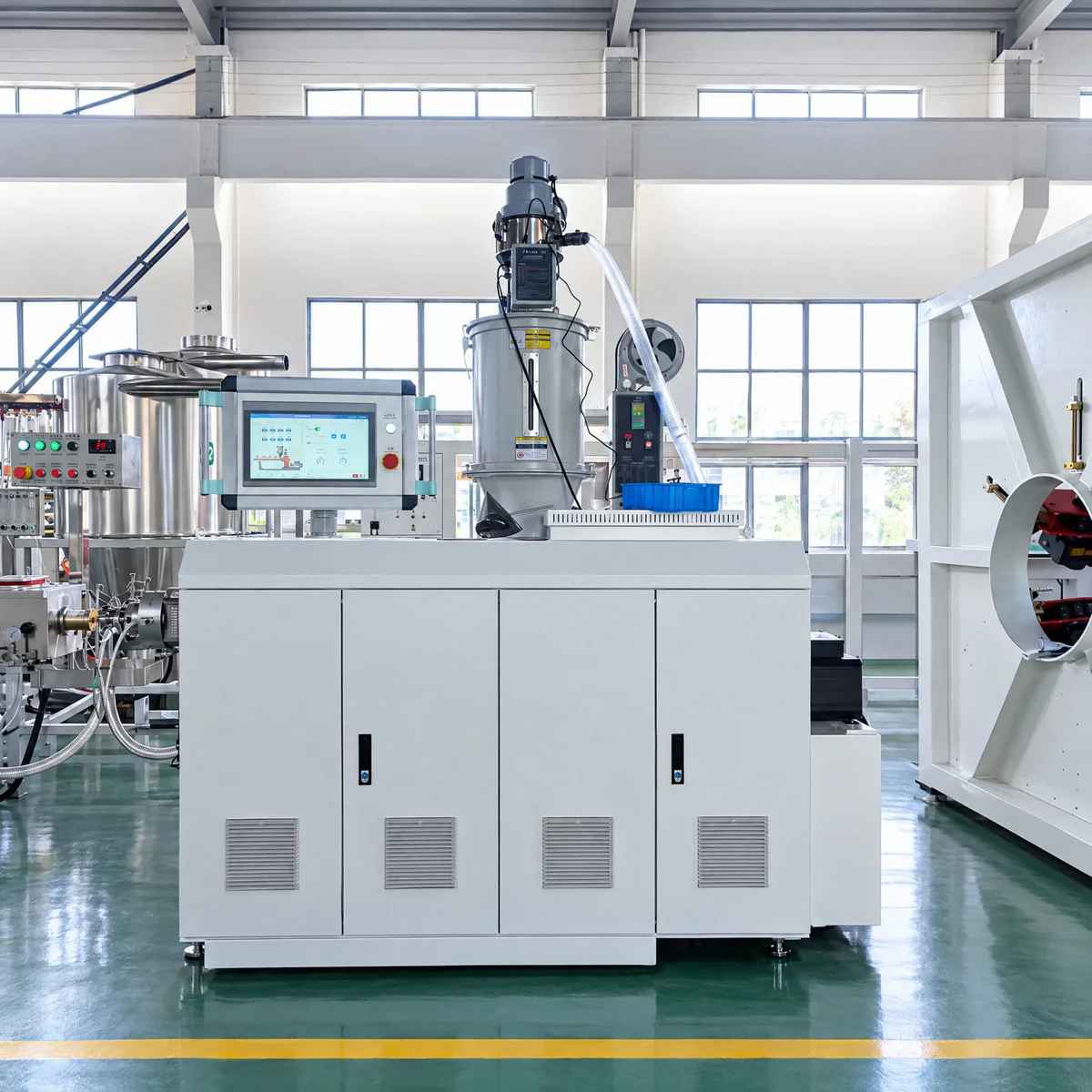

3. What extruder configuration is suitable for reusable tumbler straw production?
A stable single screw extruder with proper screw design, heating control, and matching output is usually suitable for tumbler straw production.
The extruder is the core machine of the line. For reusable tumbler straw production, the extruder must provide stable melting, uniform plasticizing, and steady material output.
In the THERMOS case, QTech-Machinery supplied a QX-SJ50/28 single screw extruder. This configuration was selected for small-diameter straw tube extrusion and complete-line integration.
Example extruder configuration
| Item | Configuration |
|---|---|
| Model | QX-SJ50/28 |
| Screw diameter | 50 mm |
| L/D ratio | 28:1 |
| Screw speed | 0–70 rpm |
| Main motor | 22 kW Inovance permanent magnet synchronous motor |
| Heating zones | 4 barrel heating zones |
| Control | Touchscreen control |
| Screw material | 38CrMoALA, nitrided and surface-treated |
A suitable extruder for tumbler straw production should provide:
- Stable melt pressure
- Good plasticizing performance
- Accurate temperature control
- Smooth output
- Easy operation
- Compatibility with the selected material
- Reliable connection with the die and downstream equipment
The extruder should not be oversized or undersized. If the extruder is too small, it may not reach the required output. If it is too large, the line may be difficult to control at low output, especially for small-diameter straw production.
Why the screw and heating system matter
Small tube extrusion is sensitive to melt quality. Poor plasticizing can cause unstable flow, surface defects, bubbles, or inconsistent diameter. A properly selected screw and barrel system helps maintain consistent melt delivery.
The four-zone heating system and touchscreen control help operators adjust the process more conveniently. With the right settings, the operator can balance melt temperature, output, line speed, cooling, and cutting.
QTech-Machinery’s advantage is that we integrate the extruder with the full downstream line. This helps reduce mismatch problems between extrusion speed, cooling length, haul-off speed, and cutting accuracy.
Related internal link:

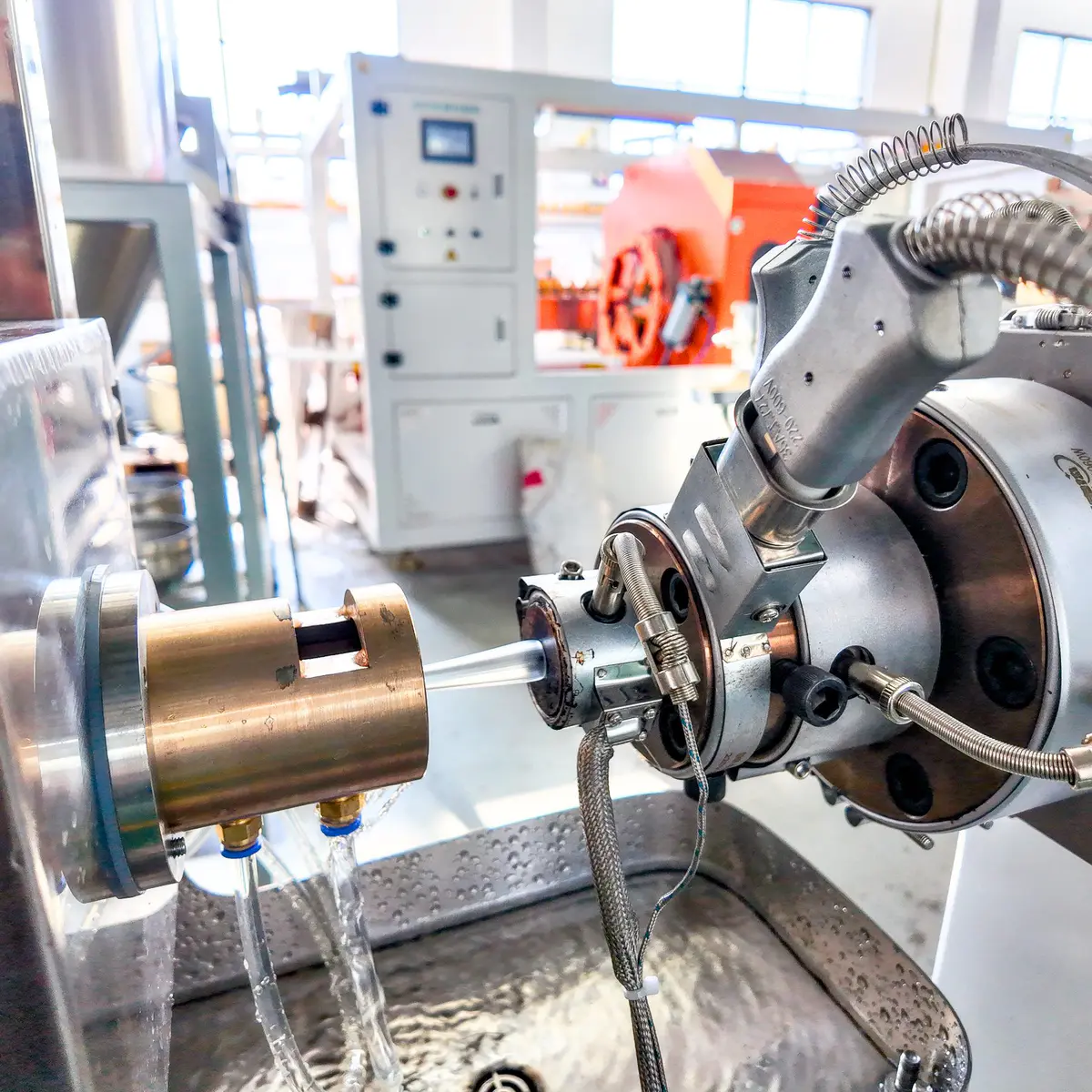

4. How important are the die and calibration system for straw size accuracy?
The die and calibration system are critical because they directly affect straw diameter, wall thickness, roundness, and production stability.
For tumbler straw extrusion, the die forms the initial straw shape. The vacuum calibration and cooling system then stabilizes the size and shape. This part is especially important for reusable straws with small diameters and thin walls.
In the THERMOS project, QTech-Machinery supplied a customized straw extrusion die and a vacuum cooling calibration tank. The die was designed according to the customer’s straw size requirements, including 8 × 6 mm and 9.5 × 7.5 mm.
Die and calibration functions
| Component | Main function |
|---|---|
| Extrusion die | Forms straw outer diameter and inner diameter |
| Vacuum calibration tank | Controls shape, roundness, and sizing |
| Cooling water system | Stabilizes the extruded straw |
| Guide rollers | Support stable movement through the tank |
| Industrial chiller | Provides controlled cooling water |
If the die design is not suitable, the line may face problems such as uneven wall thickness, unstable diameter, or poor surface quality. If the calibration and cooling system is not matched, the straw may deform after leaving the die.
What to check before confirming the die
Before ordering the line, confirm:
- Required outer diameter
- Required inner diameter
- Wall thickness tolerance
- Material shrinkage
- Production speed
- Cooling water temperature
- Whether more than one straw size is needed
- Whether quick die change is required
In online manufacturing discussions, plastic extrusion operators often point out that many product defects are not caused by one single machine part. Instead, defects can come from a combination of die temperature, material condition, cooling, and pulling speed. This is why a complete-line supplier is more valuable than buying separate machines from different sources.
QTech-Machinery’s advantage is customized die design and complete-line testing. We can provide the die, calibration tank, haul-off, cutter, and finishing machines as one integrated production solution.
Related internal link:

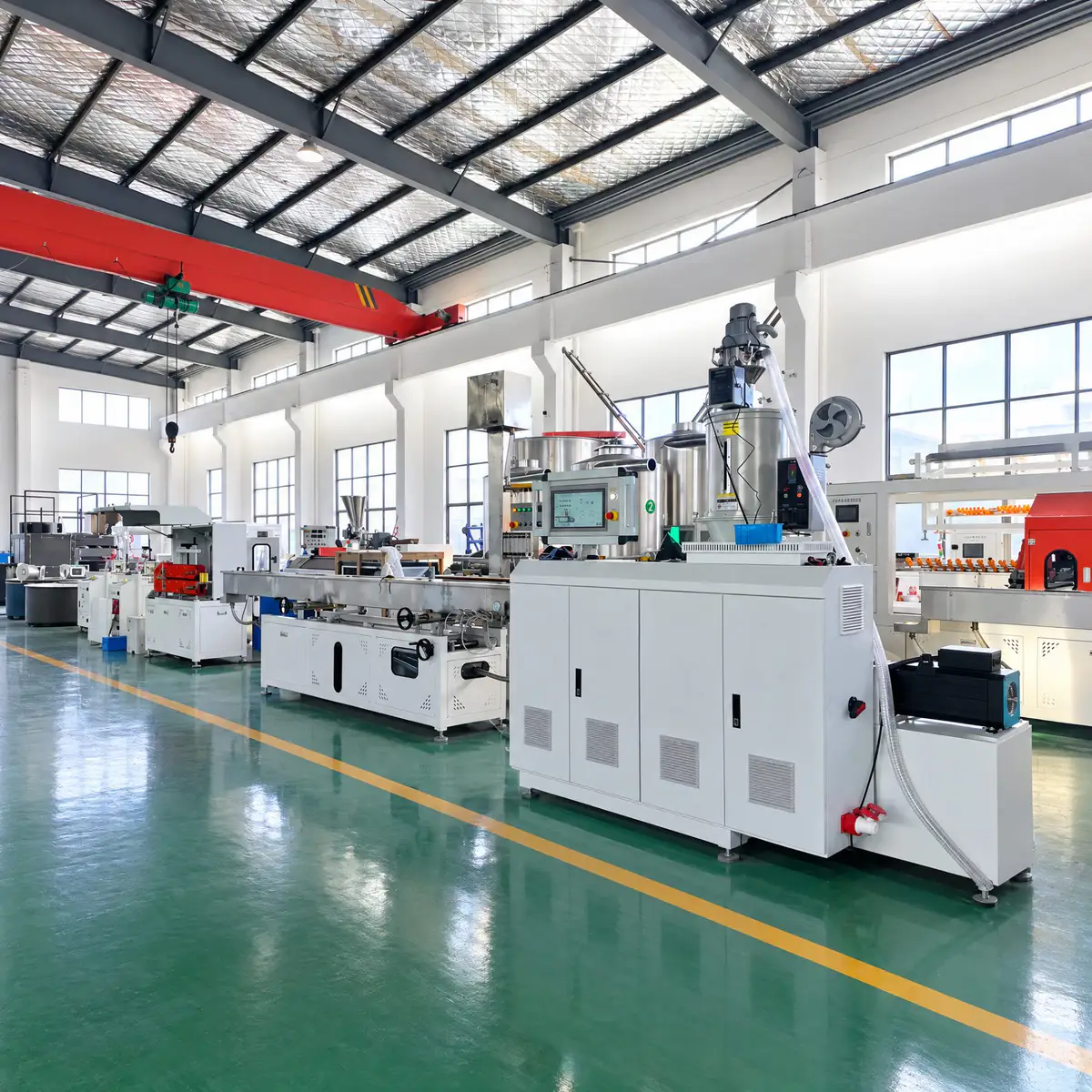

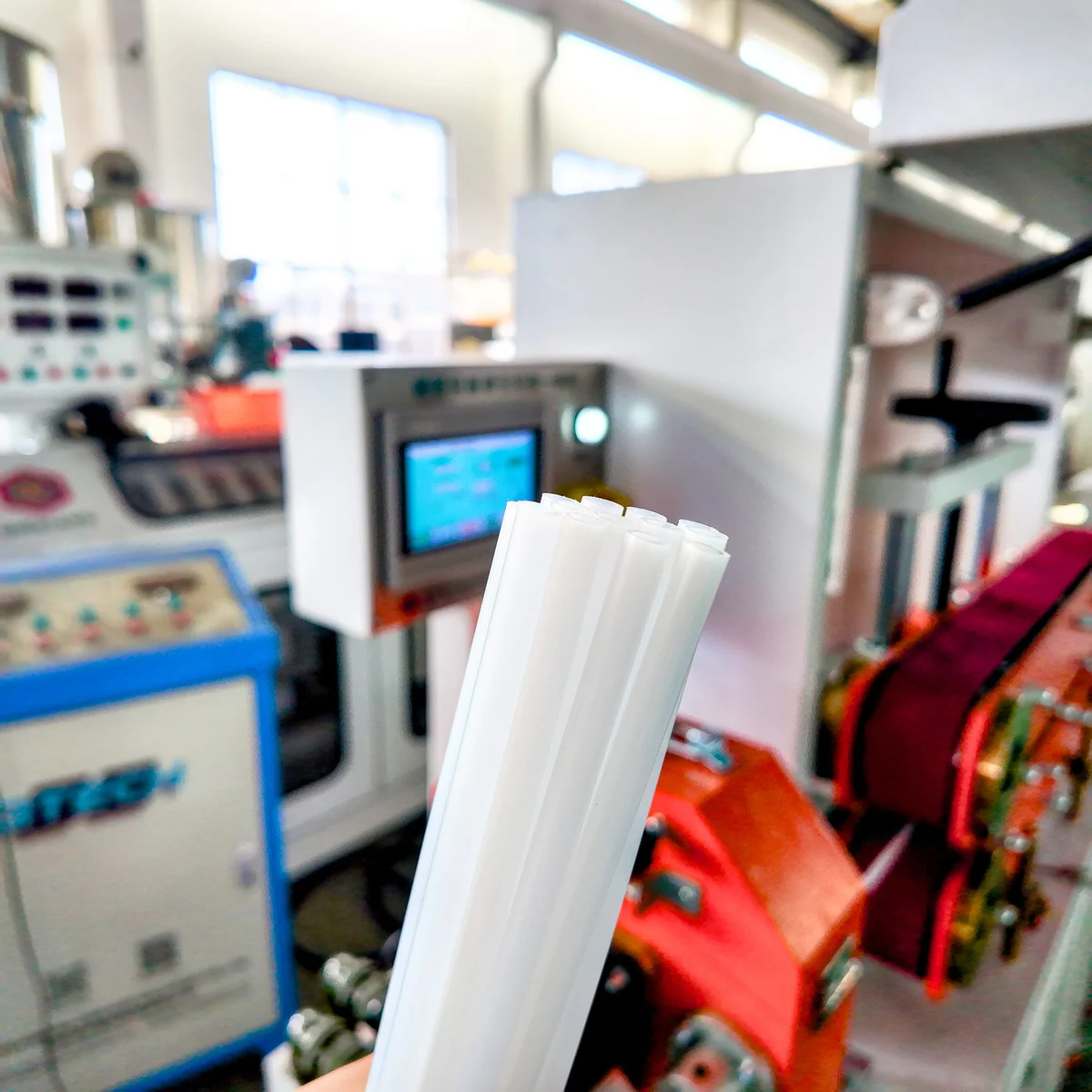

5. What downstream equipment should a complete tumbler straw extrusion line include?
A complete line should include feeding, extrusion, die forming, vacuum calibration, cooling, haul-off, cutting, chamfering, V-shape opening, and chilling systems.
Many buyers focus only on the extruder, but downstream equipment is just as important. For reusable tumbler straws, the final product quality depends heavily on cooling, pulling, cutting, and finishing.
In the THERMOS project, QTech-Machinery supplied a complete line covering:
- Automatic vacuum loader
- Single screw extruder
- Customized extrusion die
- Vacuum cooling calibration tank
- Servo haul-off cutting machine
- Chamfering machine
- V-shape opening machine
- Industrial chiller
Complete line configuration
| Process stage | Machine | Purpose |
|---|---|---|
| Material feeding | QX-300 automatic vacuum loader | Transfers pellets into extruder automatically |
| Melting and extrusion | QX-SJ50/28 single screw extruder | Melts and extrudes LLDPE/PCT |
| Forming | Customized straw die | Forms OD and ID |
| Sizing and cooling | Vacuum cooling calibration tank | Controls straw shape and cooling |
| Pulling | Servo haul-off | Maintains stable line speed |
| Cutting | Flying knife cutter | Cuts straw online at set length |
| End finishing | Chamfering machine | Smooths straw ends |
| Opening processing | V-shape opening machine | Creates required straw opening |
| Temperature support | Industrial chiller | Supplies controlled cooling water |

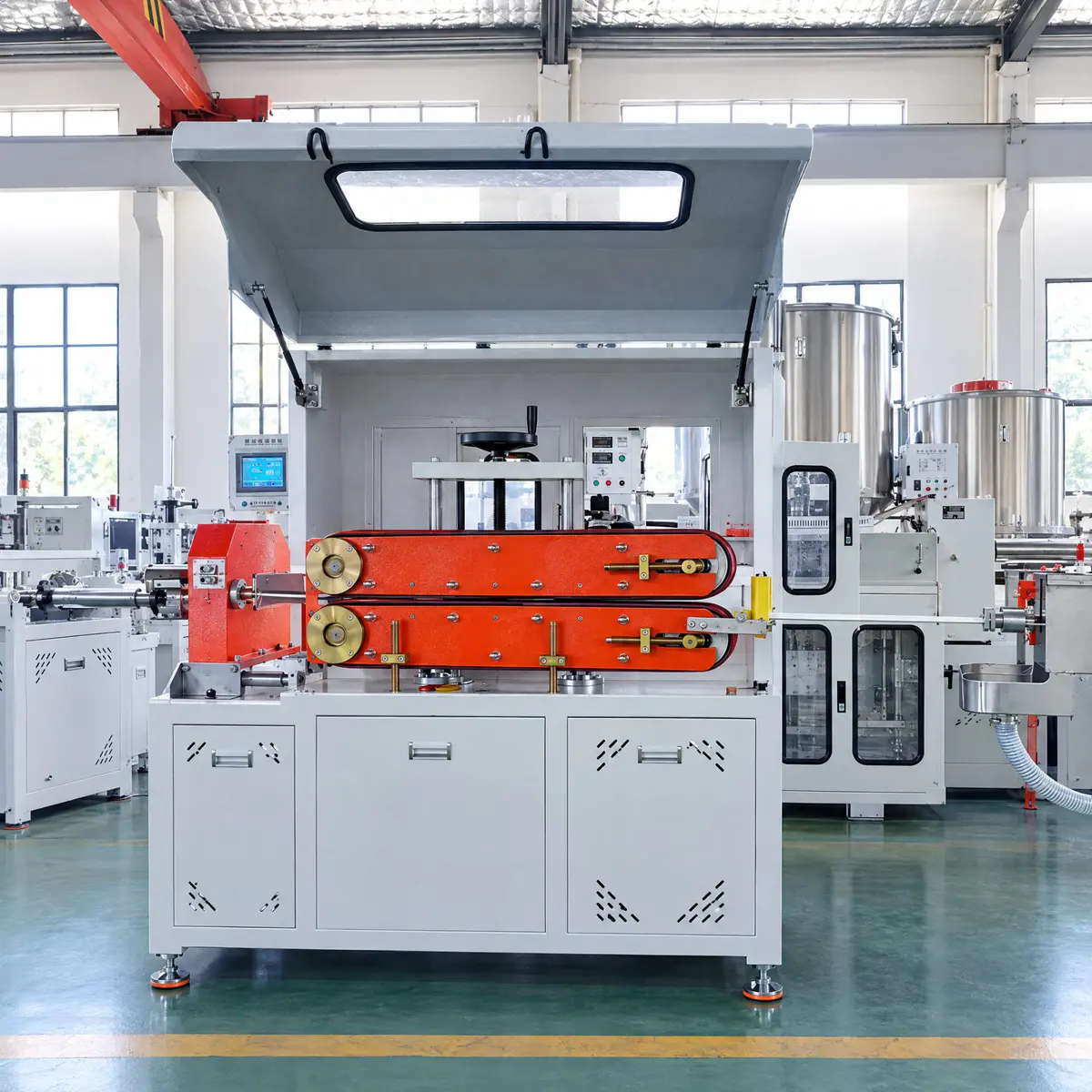

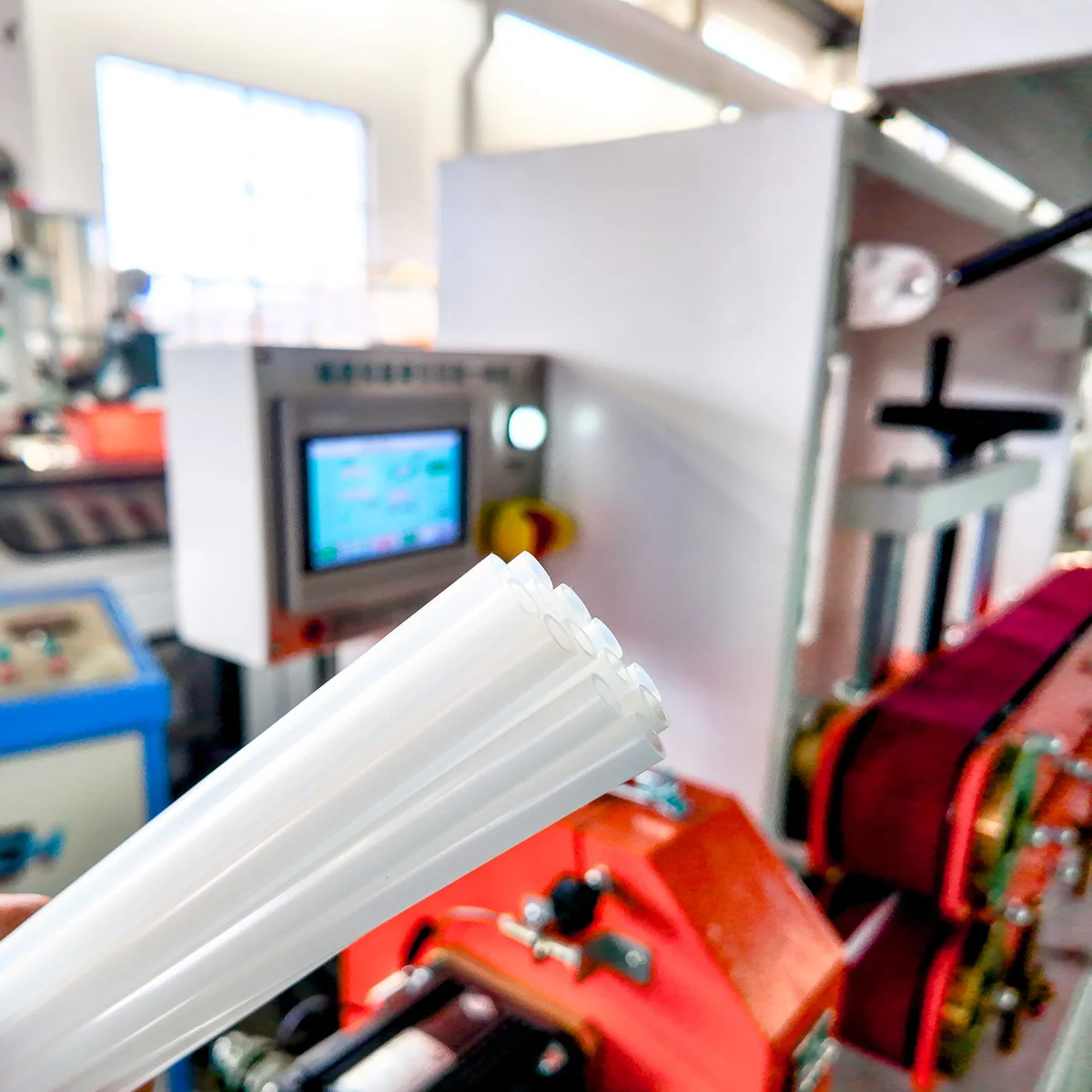

Why servo haul-off and flying knife cutting matter
For small-diameter straws, cutting accuracy depends on stable pulling. If haul-off speed is unstable, straw length may vary. If the cutting system is not matched with the extrusion speed, the straw may deform, bend, or show rough ends.
A servo haul-off cutting machine helps control pulling speed and cutting length. A flying knife cutter can cut continuously without stopping the extrusion process.
Related internal links:
QTech-Machinery’s advantage is full-process matching. We design the upstream and downstream equipment together, reducing the risk of mismatch after installation.
6. What output capacity should you choose for a tumbler straw extrusion line?
Choose capacity based on your material, straw size, working hours, order volume, and acceptable production speed.
The output of a tumbler straw extrusion line depends on many factors. For the THERMOS-type reusable straw line, the approximate capacity range is 10–40 kg/h, depending on material, straw dimensions, line settings, and operating conditions.
It is important to understand that output is not a fixed number for all products. A larger straw, thicker wall, or different material will change the actual production result.
Factors affecting output
| Factor | Effect on output |
|---|---|
| Material type | Different melting and cooling behavior |
| Straw OD and ID | Larger or thicker straws use more material |
| Line speed | Higher speed may require stronger cooling |
| Cutting length | Shorter pieces require more frequent cutting |
| Cooling efficiency | Insufficient cooling limits speed |
| Operator skill | Stable settings improve production |
| Finishing process | Chamfering and opening may affect total efficiency |
Simple capacity planning example
| Production condition | Planning consideration |
|---|---|
| Trial or small batch | Lower capacity may be enough |
| Brand supply production | Need stable continuous output |
| Multiple straw sizes | Need flexible die and setup |
| High daily order volume | Need higher automation and cooling capacity |
| Strict product tolerance | Stability may be more important than maximum speed |
When choosing capacity, do not only ask for the highest kg/h. A practical line should balance:
- Output
- Size accuracy
- Surface quality
- Cutting consistency
- Finishing quality
- Energy consumption
- Operator convenience
- Long-term reliability
QTech-Machinery can recommend a line capacity based on your straw size, material, and production target. For customers planning a similar line to the THERMOS project, we can provide a configuration proposal and quotation according to real requirements.
7. How should buyers evaluate supplier capability before placing an order?
Evaluate whether the supplier can provide product analysis, line design, machine manufacturing, testing, documentation, installation support, and after-sales service.
A tumbler straw extrusion line is a customized production system. The supplier’s experience matters because the line needs to work as a complete process, not as separate machines.
When evaluating a supplier, ask whether they can support:
- Product size analysis
- Material processing evaluation
- Die design
- Extruder selection
- Cooling and calibration design
- Cutting and finishing solution
- Line layout
- Trial running
- Shipment preparation
- Technical documents
- Installation guidance
- Spare parts support
Buyer evaluation checklist
| Question | Why it matters |
|---|---|
| Has the supplier made similar straw or tube lines? | Experience reduces project risk |
| Can the supplier customize the die? | Straw size depends on die design |
| Can the supplier provide downstream machines? | Cutting and finishing affect final quality |
| Can the line process your material? | Different plastics need different settings |
| Can the supplier test the line before shipment? | Testing helps verify basic performance |
| Are manuals and electrical documents available? | Important for installation and maintenance |
| Is after-sales support available? | Reduces downtime after delivery |
The THERMOS case shows QTech-Machinery’s ability to supply a customized complete extrusion and finishing line for a well-known drinkware brand. The line was designed for reusable tumbler straw production, including extrusion, cooling, sizing, cutting, chamfering, and V-shape opening.
Customer selection steps
| Step | Buyer action | QTech-Machinery support |
|---|---|---|
| 1 | Send straw drawing or samples | Review OD, ID, wall thickness, and length |
| 2 | Confirm material | Evaluate LLDPE, PCT, or other plastics |
| 3 | Define output target | Recommend extruder and line speed |
| 4 | Confirm finishing requirements | Add chamfering and opening equipment if needed |
| 5 | Review layout | Provide line arrangement suggestion |
| 6 | Confirm quotation | Provide configuration and price |
| 7 | Arrange production | Manufacture customized equipment |
| 8 | Test before shipment | Run line and check product result |
| 9 | Ship and install | Provide documents and technical support |
QTech-Machinery’s advantage is that we can help customers turn a product idea or sample into a practical production line.
8. What products and documents should the manufacturer provide with the line?
A professional manufacturer should provide a complete machine package and key technical documents for installation, operation, maintenance, and future production management.
When buying a tumbler straw extrusion line, buyers should confirm not only the equipment list but also the support files. Clear documentation helps the customer install, operate, maintain, and troubleshoot the line more efficiently.
Product list QTech-Machinery can provide
| Product / machine | Function |
|---|---|
| Automatic vacuum loader | Automatic pellet feeding |
| Hopper and feeding system | Material storage and transfer |
| Single screw extruder | Melting and extrusion |
| Customized straw extrusion die | Forms straw OD and ID |
| Vacuum calibration tank | Size control and cooling |
| Cooling water system | Stabilizes straw shape |
| Servo haul-off machine | Pulls straw at stable speed |
| Flying knife cutting machine | Online fixed-length cutting |
| Chamfering machine | Smooths straw ends |
| V-shape opening machine | Processes straw opening |
| Industrial chiller | Supplies controlled cooling water |
| Electrical control system | Machine operation and control |
| Spare parts | Supports maintenance |
Document list QTech-Machinery can provide
| Document | Purpose |
|---|---|
| Quotation and configuration sheet | Confirms machine scope |
| Technical proposal | Explains line design and main data |
| Machine layout drawing | Helps workshop planning |
| Electrical diagram | Supports installation and maintenance |
| Operation manual | Guides daily operation |
| Maintenance guide | Helps reduce downtime |
| Spare parts list | Supports future replacement |
| Testing report or running record | Shows pre-shipment test result |
| Packing list | Supports shipment checking |
| Installation guidance | Helps line setup |
| Product sample photos or videos | Supports acceptance and marketing |
For customers who need to introduce the production line to internal teams, buyers, or investors, QTech-Machinery can also support product photos, running videos, and basic technical explanations.
Customer case reference: THERMOS reusable tumbler straw extrusion line project
The THERMOS reusable tumbler straw extrusion line project is a useful reference for buyers planning a similar production line.
Project overview
| Item | Details |
|---|---|
| Customer | THERMOS |
| Supplier | QTech-Machinery |
| Project type | Complete extrusion line |
| Application | Reusable tumbler straw |
| Material | LLDPE and PCT |
| Product sizes | 8 × 6 mm and 9.5 × 7.5 mm |
| Approx. capacity | 10–40 kg/h |
| Process | Feeding, extrusion, calibration, cooling, cutting, chamfering, opening |
What the customer needed
THERMOS needed a line for reusable tumbler straws with:
- Stable small-diameter tube extrusion
- Consistent straw size
- Accurate cutting length
- Chamfered straw ends
- V-shape opening processing
- Practical daily production layout
What QTech-Machinery supplied
QTech-Machinery supplied a customized complete line including:
- Automatic material feeding
- Single screw extrusion
- Customized straw die
- Vacuum calibration and cooling
- Servo haul-off
- Flying knife cutting
- Chamfering
- V-shape opening
- Industrial chilling system
This case shows that the right tumbler straw extrusion line should be selected according to real product and process requirements, not only according to machine price.
External references and industry discussion notes
When selecting a tumbler straw extrusion line, it is helpful to review general extrusion knowledge and manufacturing discussions. These resources can help buyers better understand common extrusion challenges such as melt stability, die design, cooling control, and downstream synchronization.
Recommended external resources
-
Society of Plastics Engineers — Extrusion Division
The SPE extrusion resources discuss common extrusion hints and troubleshooting topics, including the importance of understanding material, screw, die, and process conditions together.
Link: https://extrusion.4spe.org/extrusion-hints/ -
Reddit manufacturing and crafting discussions
Public discussions about straw manufacturing often show that users are curious about how straws are formed, cut, decorated, and finished. While these discussions are not technical standards, they reflect real market interest in straw production methods.
Link: https://www.reddit.com/r/crafting/ -
Plastics Technology
Plastics Technology provides articles about extrusion, processing, troubleshooting, and plastics manufacturing. It is useful for understanding broader extrusion industry practices.
Link: https://www.ptonline.com/ -
QTech-Machinery customer cases
Reviewing real project cases helps buyers compare machine configuration, application, material, and complete-line supply experience.
Link: https://qinxmachinery.com/cases/
These references support one important point: extrusion quality is usually the result of the whole system, including material preparation, extruder stability, die design, calibration, cooling, haul-off, cutting, and finishing.
Conclusion
Choosing the right tumbler straw extrusion line requires a complete review of your product, material, size, output, cutting method, finishing process, and supplier capability.
For reusable tumbler straw production, especially for drinkware brands, the line should provide stable extrusion, accurate sizing, reliable cooling, precise cutting, smooth chamfering, and customized opening processing.
QTech-Machinery can provide a complete customized solution based on your straw samples, drawings, material, and production target. The THERMOS reusable tumbler straw extrusion line project is a practical example of how a complete line can be designed for LLDPE and PCT reusable straw manufacturing.
If you are planning a similar project, you can send your straw size, material, target output, and finishing requirements. QTech-Machinery can recommend a suitable configuration and provide a technical proposal.
