Revolutionizing PVC Pipe Production with QTech-Machinery
Discover how QTech-Machinery's cutting-edge PVC pipe extrusion line enhances production efficiency and quality. Designed for water supply pipes ranging from Φ110mm to Φ315mm, this advanced solution offers superior performance, energy savings, and compliance with international standards. Watch to learn how we can transform your manufacturing capabilities.
Runtime
0:55
Machine
The main machine or system featured in this video is the QTech-Machinery PVC Pipe Extrusion Line.
Process
The main step shown in the video is likely the installation of the QTech-Machinery PVC Pipe Extrusion Line, focusing on its setup and integration into the manufacturing process.
Materials
PVC
Pipe
PVC Pipe
What This Video Shows
- Efficiency Enhancement: Demonstrates how QTech-Machinery's PVC pipe extrusion line boosts production efficiency with high-output and precision engineering.
- Quality Assurance: Highlights advanced technologies like the conical twin screw extruder and vacuum calibration table that ensure superior pipe quality and dimensional accuracy.
- Cost-Effectiveness: Shows how the system reduces energy consumption and material waste, leading to significant cost savings for manufacturers.
- Scalability and Flexibility: Explains the system's ability to produce a wide range of pipe diameters, catering to diverse industry needs.
- Global Compliance: Emphasizes adherence to international standards, making it suitable for various markets worldwide.
Revolutionizing PVC Pipe Production with QTech-Machinery
Introduction
Welcome to our in-depth exploration of QTech-Machinery's state-of-the-art PVC pipe extrusion line. This video delves into the intricacies of our innovative solution designed to meet the evolving demands of the PVC pipe manufacturing industry. We will take you through every aspect of our production line, highlighting its capabilities, configurations, and the substantial benefits it offers to manufacturers worldwide.
Understanding the PVC Pipe Market
Market Dynamics and Trends
The global PVC pipe market has witnessed significant growth driven by increasing demand in residential, commercial, and industrial sectors. PVC pipes are favored for their durability, cost-effectiveness, and ease of installation. As the market expands, manufacturers face the challenge of enhancing production efficiency while maintaining high-quality standards. This is where QTech-Machinery steps in with its cutting-edge solutions.
Challenges Faced by Manufacturers
Manufacturers often grapple with issues such as energy consumption, production downtime, and quality control. Addressing these challenges requires advanced technology and innovative solutions that can seamlessly integrate into existing operations while offering scalability and flexibility.
QTech-Machinery's PVC Pipe Extrusion Line
Overview of the Solution
QTech-Machinery's PVC pipe extrusion line is engineered to deliver unparalleled performance and efficiency. Our solution is tailored to produce water supply pipes with diameters ranging from Φ110mm to Φ315mm, catering to diverse industry needs. The line is designed to optimize resource utilization, reduce waste, and ensure consistent product quality.
Key Components and Configurations
| Component | Description | Specifications |
|---|---|---|

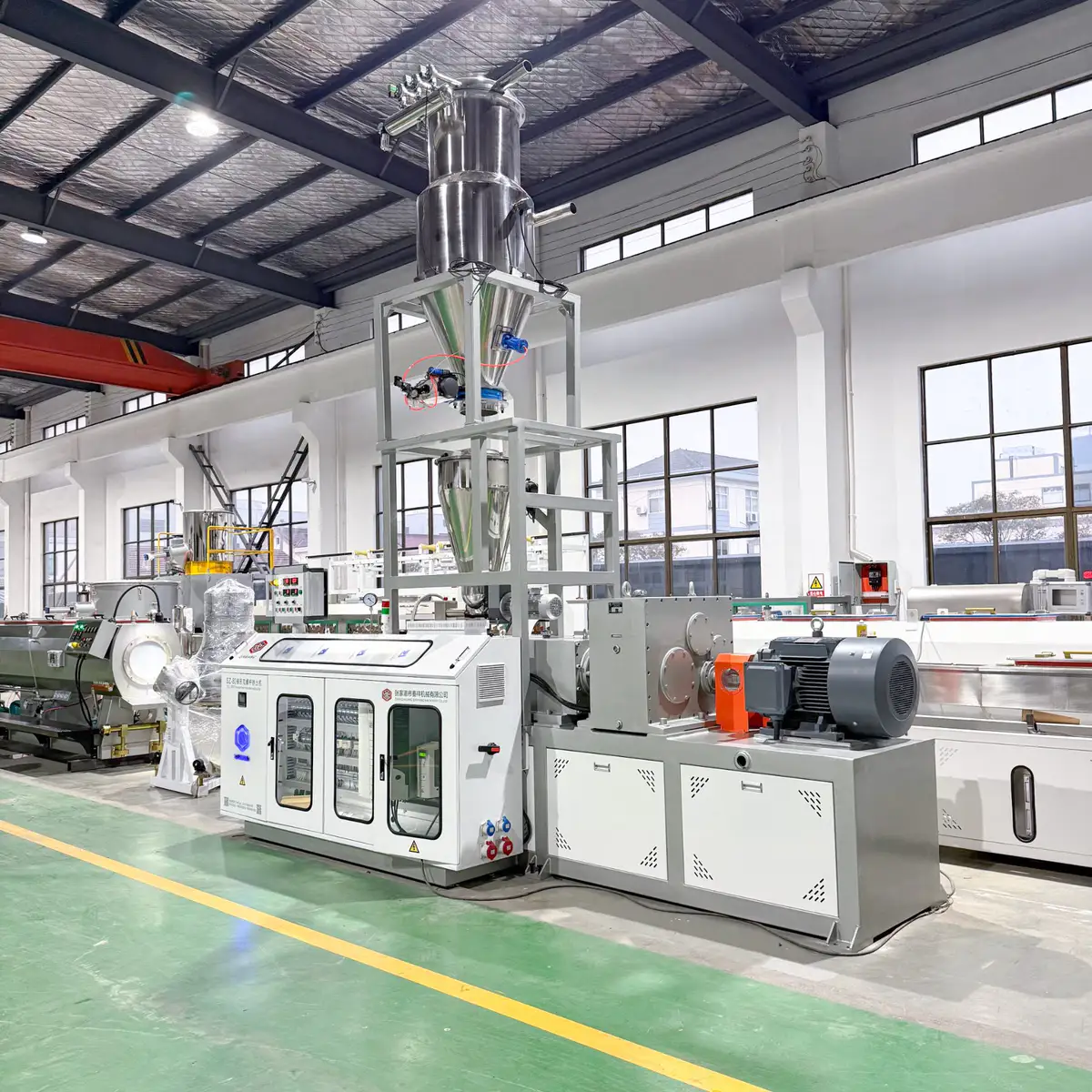

| Conical Twin Screw Extruder | Core of the extrusion line, ensuring high output and precision | 300-650 kg/h, 55KW Siemens motor |
| Pipe Moulds | Essential for forming pipes of various diameters | Supports diameters from 110mm to 315mm, chrome-plated |
| Vacuum Calibration Table | Ensures dimensional accuracy and surface finish | 8 meters long, dual-circuit water supply |
| Haul-off Machine | Controls pipe movement and maintains tension | Four-claw design, pneumatic clamping |
| Chipless Cutter | Provides clean, precise cuts without material loss | Servo motor control, up to 25mm thickness |
Technical Innovations
Advanced Extrusion Technology

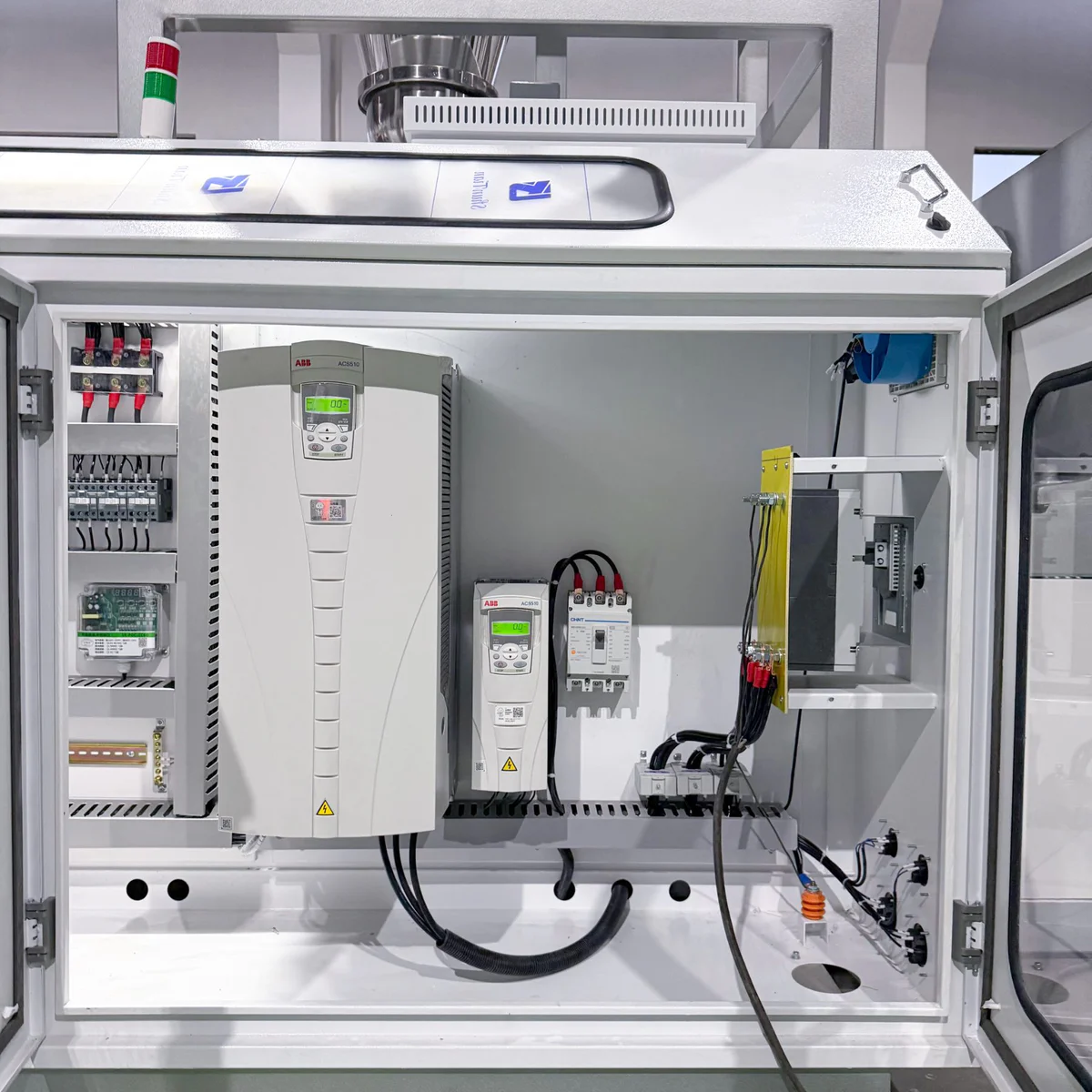

Our extrusion technology incorporates the latest advancements in polymer processing. The conical twin screw design enhances material flow and mixing, resulting in superior pipe quality. The integration of Siemens motors and ABB inverters ensures reliable performance and energy efficiency.
Precision Engineering
Every component of our extrusion line is meticulously engineered to deliver precision and reliability. From the chrome-plated moulds to the servo-controlled haul-off machine, each element works in harmony to produce pipes that meet the highest industry standards.
Benefits of QTech-Machinery's Solution
Enhanced Production Efficiency
Our extrusion line significantly boosts production efficiency, allowing manufacturers to meet increasing demand without compromising on quality. The automated features reduce manual intervention, minimizing the risk of errors and downtime.
Cost-Effectiveness
By optimizing energy consumption and reducing material waste, our solution offers substantial cost savings. Manufacturers can achieve a faster return on investment while maintaining competitive pricing in the market.
Sustainability and Compliance
QTech-Machinery is committed to sustainability. Our extrusion line is designed to minimize environmental impact, using energy-efficient components and processes. Additionally, our solution complies with international quality and safety standards, ensuring peace of mind for manufacturers and end-users alike.
Case Study: Success Story
Client Background
Our client, a leading manufacturer in the PVC pipe industry, sought to upgrade their production capabilities to meet growing market demand. They required a solution that could enhance output, improve product quality, and reduce operational costs.
Implementation and Results
QTech-Machinery's team collaborated closely with the client to customize the extrusion line to their specific requirements. The implementation was seamless, with minimal disruption to existing operations. Post-installation, the client reported a 20% increase in production efficiency and a significant reduction in energy costs.
Conclusion
In conclusion, QTech-Machinery's PVC pipe extrusion line represents the pinnacle of innovation in the pipe manufacturing industry. Our solution empowers manufacturers to overcome challenges, capitalize on market opportunities, and achieve sustainable growth. We invite you to explore our technology further and discover how it can transform your production processes.
Thank you for joining us in this comprehensive overview. For more information, visit our website or contact our team of experts. Together, let's shape the future of PVC pipe manufacturing.
Technical Points To Watch For
- 01Vacuum Calibration Testing: Demonstrates the precision of the vacuum calibration table in ensuring accurate pipe dimensions and surface finish.
- 02Extruder Performance: Showcases the conical twin screw extruder's ability to maintain consistent output and material homogeneity during production.
- 03Quality Inspection: Illustrates the inspection process for checking pipe wall thickness and diameter to ensure they meet industry standards.
- 04Integration of Automation: Highlights the integration of automated systems like the servo-controlled haul-off machine and chipless cutter to reduce manual intervention and improve accuracy.
- 05End-to-End Production Flow: Provides an overview of the seamless production flow from raw material input to finished product output, emphasizing efficiency and quality control.
Stages Covered In This Video
Video Transcript And Notes
Welcome to our video on QTech-Machinery's PVC pipe extrusion line, a state-of-the-art solution designed to enhance manufacturing efficiency and product quality. This video covers key aspects such as the production of pipes with diameters ranging from Φ110mm to Φ315mm, ensuring versatility for various applications.
We delve into the technical features of our system, including the conical twin screw extruder, which provides high output and precision, and the vacuum calibration table, which ensures dimensional accuracy and a superior surface finish. Our advanced automation, such as the servo-controlled haul-off machine and chipless cutter, reduces manual intervention and improves operational efficiency.
Energy efficiency is a highlight, with Siemens motors and ABB inverters integrated to minimize energy consumption. The system is designed for easy integration into existing production lines, offering flexibility and scalability for manufacturers looking to expand their capabilities.
Throughout the video, we address common questions about product quality, energy savings, and maintenance requirements, ensuring you have all the information needed to make an informed decision about investing in our technology.
For more detailed insights, watch the full video or visit our website for additional resources and contact information.
Configuration Shown In The Video
| Parameter | Value | Notes |
|---|---|---|
| Pipe Diameter Range | Φ110mm to Φ315mm | Suitable for various water supply applications |
| Conical Twin Screw Extruder | 300-650 kg/h | High output with 55KW Siemens motor for precision and efficiency |
| Pipe Moulds | Chrome-plated | Supports various diameters, ensuring durability and precision |
| Vacuum Calibration Table | 8 meters long | Dual-circuit water supply for accurate dimensions and surface finish |
| Haul-off Machine | Four-claw design | Pneumatic clamping for consistent tension and movement control |
| Chipless Cutter | Up to 25mm thickness | Servo motor controlled for precise, clean cuts without material loss |
Questions This Video Answers
Need an answer for your own line? Ask Maggie directly.
What pipe diameters can the QTech-Machinery extrusion line produce?
The extrusion line is capable of producing water supply pipes with diameters ranging from Φ110mm to Φ315mm.
How does the system ensure consistent product quality?
The system uses advanced technologies like a conical twin screw extruder and a vacuum calibration table to maintain high precision and dimensional accuracy.
What are the energy-saving features of this extrusion line?
The line integrates energy-efficient components such as Siemens motors and ABB inverters, reducing overall energy consumption and operational costs.
Can the system be integrated into existing production lines?
Yes, the QTech-Machinery PVC pipe extrusion line is designed for easy integration with existing systems, offering scalability and flexibility.
What kind of maintenance is required for optimal performance?
Regular inspection of the screw and gearbox, calibration of the vacuum pump, and alignment of servo motors are recommended for maintaining optimal performance.
