Pipe Sizing Sleeves
Match the pipe size, tooling and calibration tank

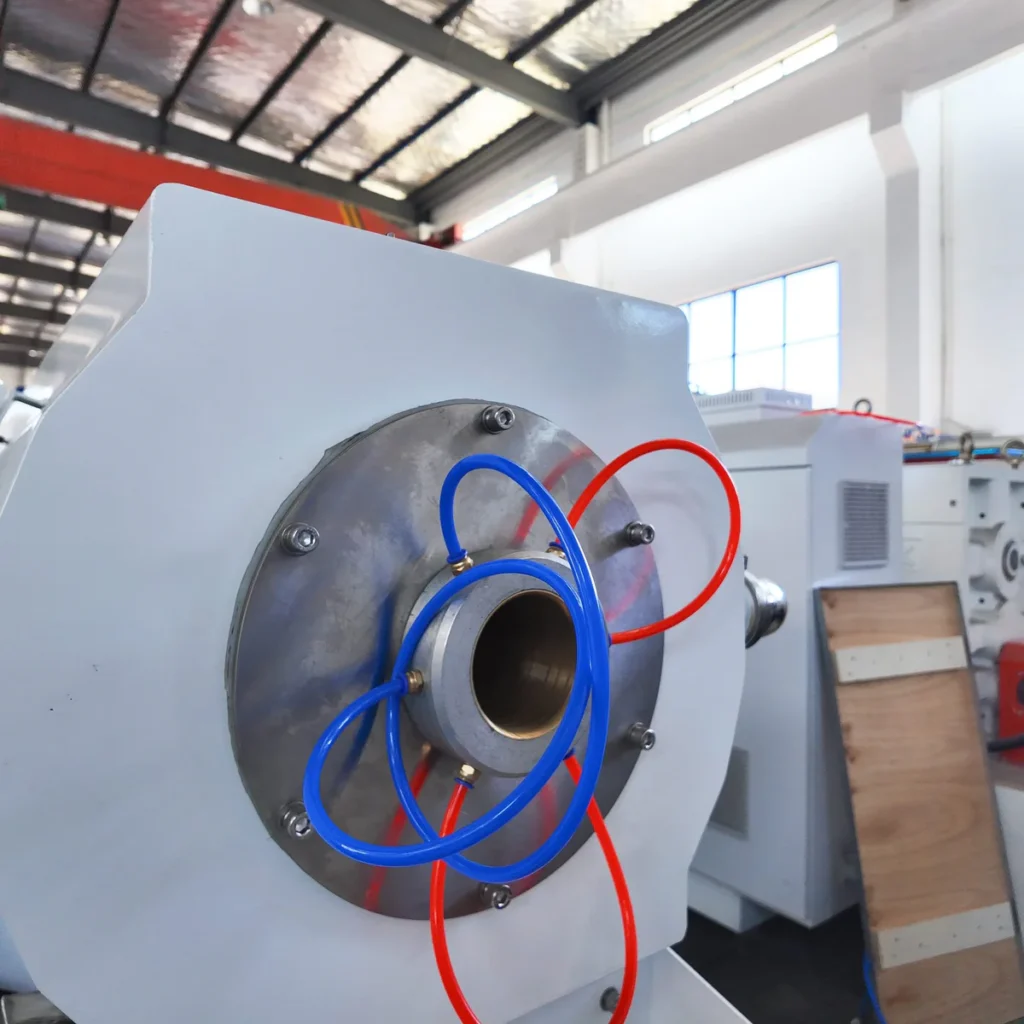

Specify a replacement sizing sleeve around your pipe dimensions and existing calibration arrangement. Send the sleeve drawing, pipe specification and mounting photos so the working surface and installation details can be checked together.
Calibration Tooling Part Type
Calibration Tooling
Machine
Calibration & Cooling
Enquiry
Matched to your machine
What To Match
Getting The Right Replacement
A sizing sleeve needs to match the pipe you produce and the equipment around it. The finished outside diameter alone is not enough to identify a replacement. Sleeve length, mounting details and the connection to the calibration arrangement also belong in the enquiry.
For an existing line, start with the current sleeve and the result you need from the replacement. State whether you are replacing a worn component, adding a pipe size or investigating a dimensional problem. This gives the technical review a clear starting point without treating different sleeves as interchangeable.
Equipment Context
Where This Part Is Used
Match the approved sleeve drawing and installation details to the specific calibration arrangement before ordering.
Equipment Families
The part family is used on these machines. Size, version and fixing are confirmed for your actual machine before quoting.
Part Matching
Not Sure Which Size Or Version You Have?
Send the nameplate, a photo of the worn part and any drawing. We match the replacement to your machine before quoting.
Identify The Replacement
How To Identify Your Part
Follow these steps and the first reply can already confirm the match.
Spare Parts Guide-
01
Identify the existing sleeve
Send any part marking, the equipment model and a drawing or dimensioned photographs.
-
02
Define the pipe requirement
List the material, finished dimensions and the size change or replacement task.
-
03
Check the matching details
Review the final drawing and mounting arrangement before confirming the order.
Maintenance Reference
When requesting a replacement, include photographs of the working surface and any damage or wear. Use the machine and tooling instructions for inspection and removal.
