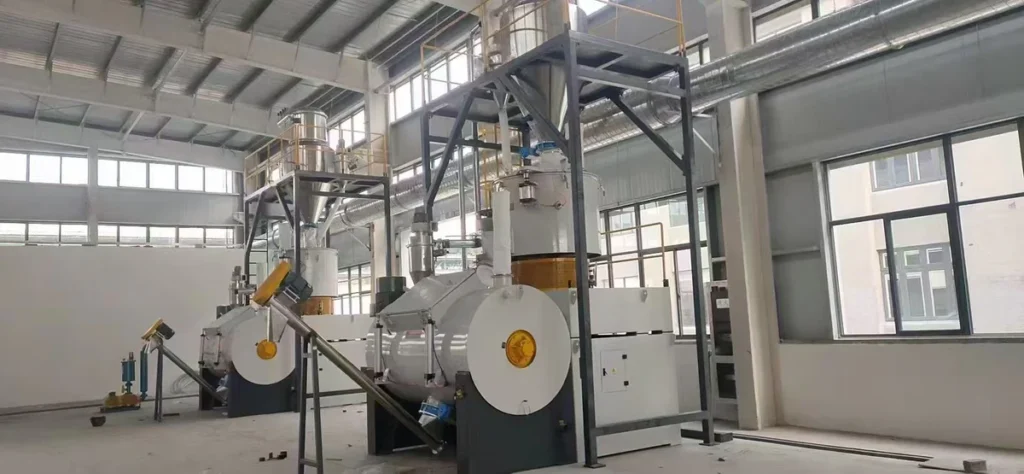

Horizontal mixing arrangement
Review the chamber and mixing action against the material properties. Identify differences in particle size, density or flow behavior that matter to the batch.
Mixing & Feeding · SRL-W Series
SRL-W Horizontal Mixer
Plan horizontal mixing around the ingredients and the batch result you need.
Specify an SRL-W horizontal mixer for your material-preparation task. Review batch loading, mixing result, discharge, cleaning and equipment connections.
SRL-W Series Machine Type
Mixing & Feeding
Series
SRL-W
Overview
Where The SRL-W Series Fits Your Process
The SRL-W is a horizontal mixing machine for material-preparation tasks. Its selection should begin with the ingredients and the required result, including the balance between mixing, discharge and cleaning. A general material category does not fully describe how a batch will behave.
Provide the formulation, ingredient form and batch quantity, then describe the sampling method used to judge the result. Include the loading and downstream transfer arrangement so the mixer can be considered within the actual workflow.
Design And Function
What The Machine Does On Your Line
Batch handling
Define how ingredients are introduced and how the mixed material is discharged. The complete sequence determines the useful production rhythm.
Access and cleaning
Specify material-change frequency and acceptable residue. Cleaning access and inspection points belong in the selection review.
Model Selection
Not Sure Which Configuration Fits Your Line?
Send your material, product size and output target. We shortlist the model and the options with you before quotation.
Applications
Products And Processes It Serves
Plastic material preparation
Evaluate the mixer for a named formulation and mixing objective rather than assuming all plastic ingredients behave alike.
Formulation changes
Review the practical requirements where ingredients, colors or recipes change between batches.
Selection
Points To Settle Before You Specify
Settle these points first and the quotation you receive can be compared line by line.
-
01
Ingredient properties
Provide bulk density, particle form and any tendency to agglomerate or segregate. Include liquids only when they are explicitly part of the intended process.
-
02
Mixing result
Define how samples will be taken and what constitutes an acceptable batch. A time setting alone does not establish mixing quality.
Line Interfaces
Connecting It To The Rest Of Your Line
SRL-W Horizontal Mixer
After It In The Line
SJSZ Conical Twin-Screw ExtruderThese machines show the position in a typical line, not a confirmed match. Interfaces are checked for each configuration.
Spare Parts
Parts For This Machine
Related Parts To Identify
These part families are used on this type of machine. Send the nameplate, a photo or the drawing so the size and version can be matched.
Part Family
Mixer Blades
Match replacement mixer blades to the shaft, blade arrangement and vessel geometry of your machine. Send the mixer identification, blade drawing and material information to define the correct replacement scope.
Identify The Part
Acceptance
Acceptance Points To Agree
Points worth writing into the order, so the run test before shipment proves what matters for your product.
Representative batch
Evaluate the agreed formulation with a defined sampling plan and inspection method.
Discharge and cleaning
Review material release, retained residue and the procedure for changing to the next formulation.
Technical FAQ
Questions Before You Specify
Need an answer for your own material or product? Ask Maggie directly.
Is the SRL-W a hot-and-cold mixing unit?
The SRL-W designation identifies a horizontal mixer. Heating, cooling and any additional process stages should be specified explicitly rather than assumed from the series name.
How much material can be mixed in one batch?
The working batch depends on the selected chamber and material properties. Provide batch mass and bulk density for configuration review.
Can different colors or formulations share one mixer?
That depends on cleaning requirements and allowable carryover. Describe the changeover routine and residue limits before selecting the arrangement.
Configuration Request
Discuss Your SRL-W Horizontal Mixer Configuration
Tell us what you need to produce, the required output and whether this is a new installation or a replacement. Share the information you already have so we can review the next configuration details with you.
Have These Ready
- Ingredient list and material properties
- Batch mass and bulk density
- Required mixing result
- Changeover and cleaning expectations
- Loading and discharge arrangement
