Project Type
Complete Extrusion Line
Machines
Dosing & Feeding Equipment, Extruder, Haul-Off Machine, Pipe Cutting Machine, Pipe Extrusion Die Head, Pipe Packaging Machine
Material
PE/HDPE
Application
Agricultural Irrigation, Cable Protection, Drainage & Sewage, Gas Distribution, Industrial Pipes, Water Supply
Region
Asia-Pacific, Europe, Latin America, Middle East and Africa, North America
QTech-Machinery supplied a complete Φ20–Φ110 mm HDPE pipe extrusion line for a customer producing PE water supply pipes. The project was developed for stable medium-capacity production, precise pipe dimension control, and flexible finished pipe handling.
The customer required a production line capable of processing PE100 HDPE material and producing black HDPE pipes with color identification stripes. To meet this requirement, QTech-Machinery designed a full production system covering raw material feeding, drying, extrusion, co-extrusion, pipe forming, vacuum sizing, spray cooling, servo traction, cutting, winding, stacking, and spare parts support.
As an experienced HDPE pipe extrusion line manufacturer in China, QTech-Machinery provided a turnkey solution based on the customer’s pipe diameter range, output target, material type, pipe application, and factory operation needs.
The final line was configured for Φ20 mm to Φ110 mm HDPE pipe production, with a designed output of 200–250 kg/h and a line speed range of 1–25 m/min, depending on pipe diameter and wall thickness.
The customer wanted to build a practical and efficient HDPE pipe production line for small and medium diameter PE water pipes. The machine needed to support continuous production, stable pipe quality, and convenient operation by local workers.
The main project requirements included:
1. Produce HDPE pipes from Φ20 mm to Φ110 mm
2. Use PE100 grade raw material
3. Produce black pipes with four color marking stripes
4. Reach a production capacity of around 200–250 kg/h
5. Maintain stable pipe outer diameter and wall thickness
6. Support both coiled pipe and straight pipe collection
7. Reduce manual operation during material feeding and production
8. Use reliable electrical control components
9. Provide accurate haul-off and cutting performance
10. Include spare parts and technical support for long-term operation
The customer also expected the supplier to provide a complete solution instead of separate machines. Therefore, QTech-Machinery prepared the full line layout, technical configuration, auxiliary equipment, control system, and downstream matching solution.
After evaluating the customer’s pipe size range, raw material, production capacity, and finished product handling requirements, QTech-Machinery recommended a complete Φ20–Φ110 mm HDPE pipe extrusion machine line.

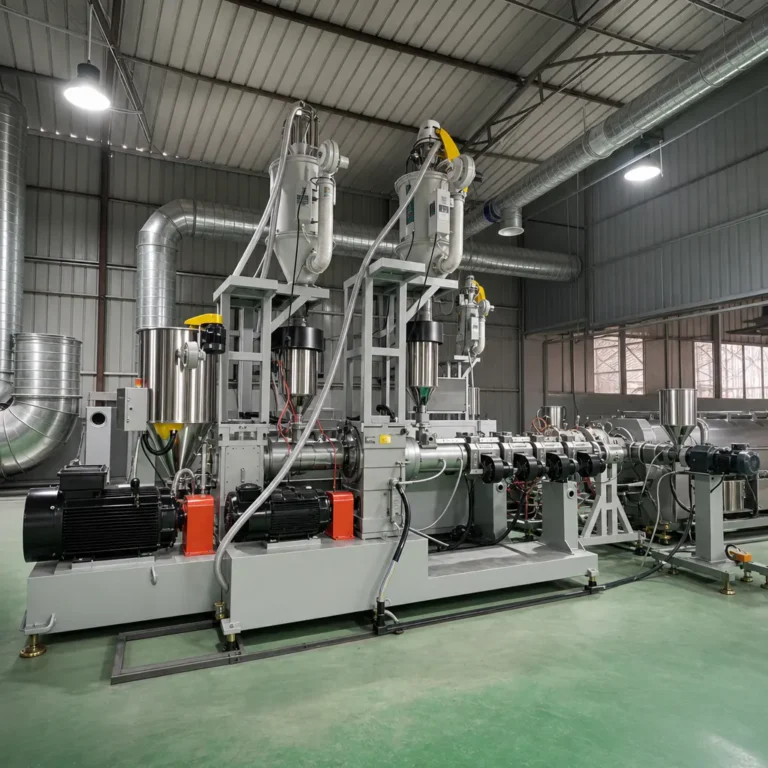

The solution was built around an SJ75/33 single-screw extruder, supported by automatic vacuum loading, hopper drying, gravimetric dosing, color stripe co-extrusion, high-speed PE pipe die tooling, vacuum calibration, spray cooling, servo haul-off, combined cutting, pipe winding, and discharge stacking.
This design helped the customer achieve:
1. Stable extrusion output
2. Better raw material control
3. Accurate pipe forming
4. Consistent cooling performance
5. Smooth pipe traction
6. Flexible cutting methods
7. Easy switching between pipe winding and stacking
8. Higher production reliability
QTech-Machinery also considered the customer’s daily operation and maintenance needs. The line was equipped with a centralized control system, durable machine structure, stainless steel water-contact parts, and a complete spare parts package.

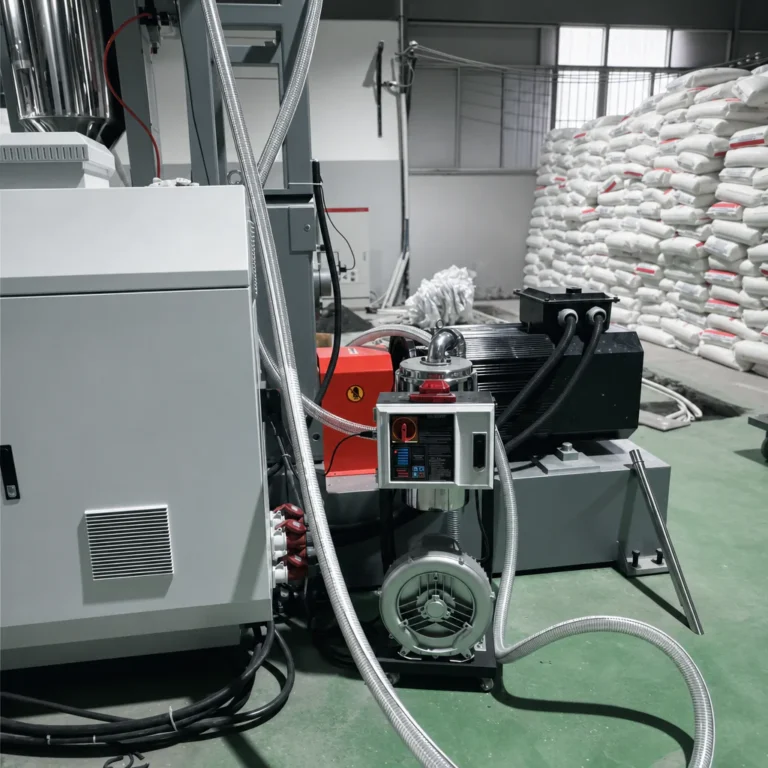

Model: QX-900 automatic vacuum loader
Used for conveying HDPE granules to the hopper dryer or extruder feeding section
Designed for continuous raw material supply
Reduces manual material handling in daily production
Helps maintain stable feeding before extrusion
Compact structure for easy installation near the extruder
Suitable for PE100 HDPE pipe production material flow
Includes automatic suction and discharge working cycle
Improves cleanliness around the production area
Supports smoother operation of the full HDPE pipe extrusion line
Installed before the main extrusion process
Used for drying HDPE resin when required by production conditions
Helps reduce moisture-related surface defects
Supports stable material temperature before feeding
Works together with the vacuum loading system
Suitable for long-time continuous pipe extrusion
Simple structure for easy cleaning and maintenance
Equipped with temperature control for drying management
Helps improve pipe appearance and extrusion consistency
Designed for integration into the full pipe production line

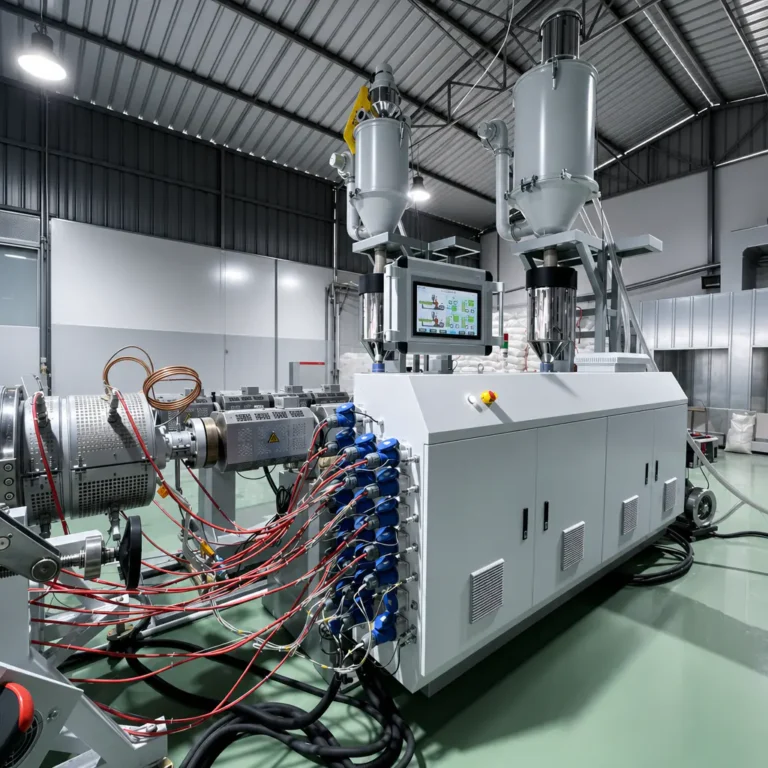

Model: SJ75/33 single-screw extruder
Screw diameter: 75 mm
Screw L/D ratio: 33:1
Suitable for PE100 HDPE pipe material processing
Designed output: 200–250 kg/h
Equipped with 110 kW Siemens Beide AC motor
Uses ABB inverter for stable speed regulation
Controlled by Siemens PLC
Operated through MCGS touchscreen HMI
Designed for stable melting, pressure control, and continuous pipe extrusion

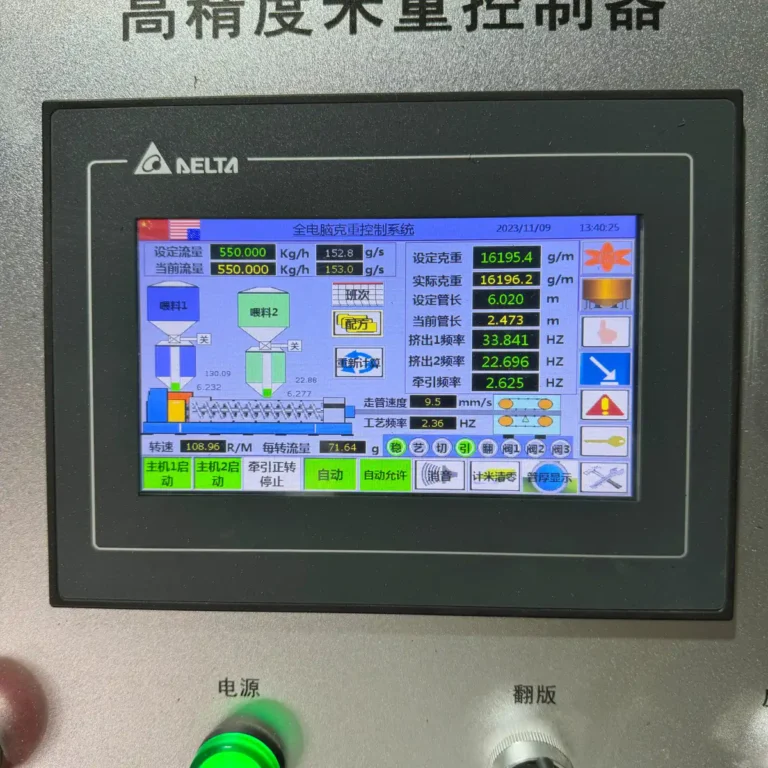

Double-layer gravimetric metering configuration
Monitors material feeding during production
Helps control pipe meter weight
Supports stable wall thickness performance
Reduces unnecessary raw material waste
Improves production data visibility
Suitable for HDPE pressure pipe manufacturing
Works with extruder and haul-off speed adjustment
Helps maintain consistent production quality
Adds automation value to the HDPE pipe production line

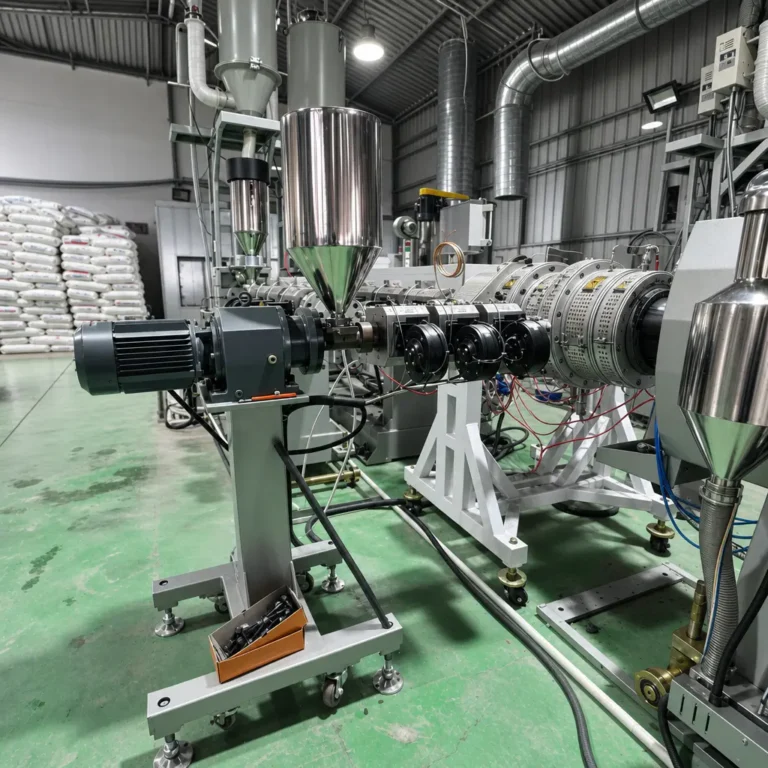

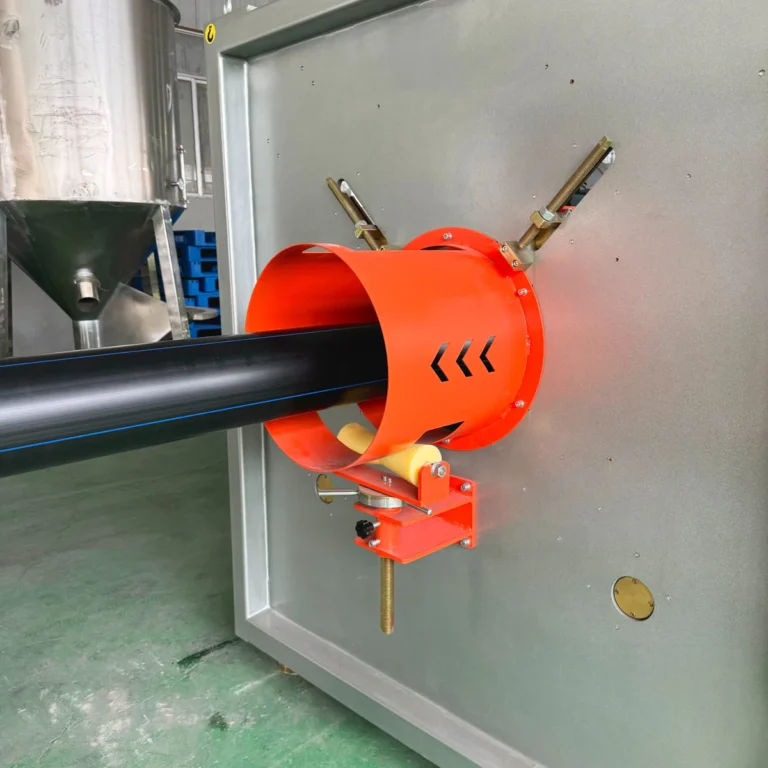

Model: SJ25/25 color stripe co-extruder
Used for color marking on HDPE pipe surface
Supports four color stripes
Suitable for water supply pipe identification
Works together with the main pipe die head
Compact design for easy installation
Provides stable small-volume color material extrusion
Helps meet common pipe marking requirements
Suitable for black HDPE pipe with blue or customized stripes
Improves product recognition in the final market

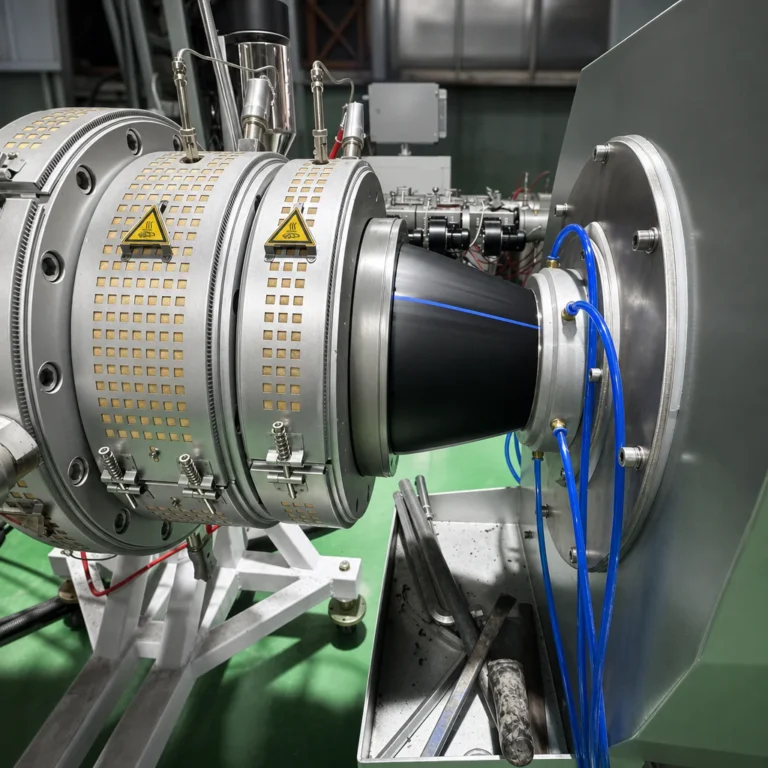

Pipe diameter range: Φ20–Φ110 mm
Designed for HDPE pipe extrusion
Made from 40Cr forged steel
Uses spiral melt distribution design
Helps improve material flow uniformity
Includes matching sizing sleeves
Sizing sleeves are made with copper material
Supports stable pipe outer diameter forming
Designed for smooth pipe surface quality
Suitable for PE water supply pipe production

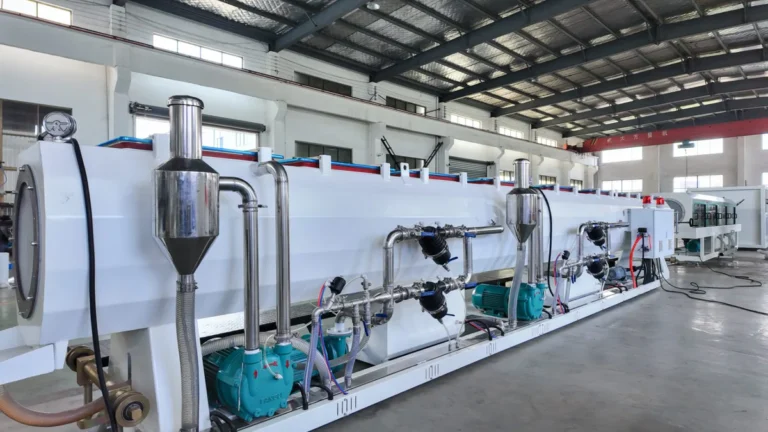

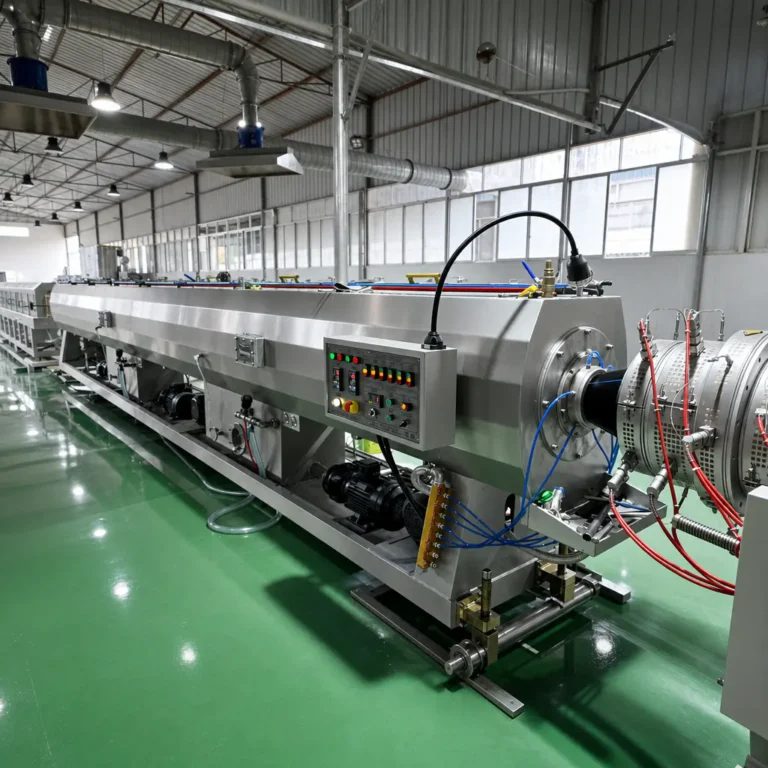

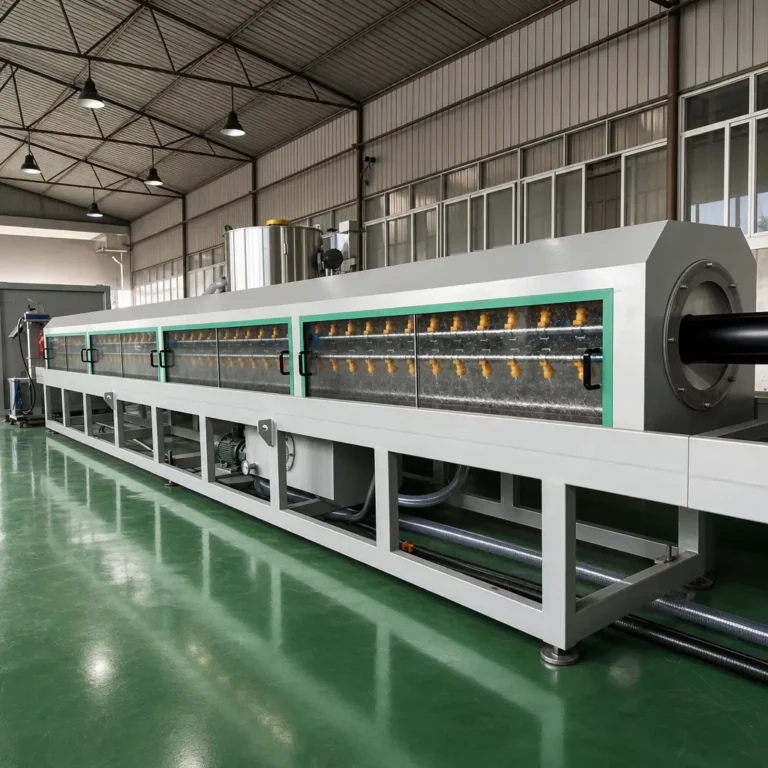

Tank length: 9 meters
Used for vacuum sizing and first-stage cooling
Made with SUS304 stainless steel
Suitable for Φ20–Φ110 mm HDPE pipe range
Equipped with intensive spray cooling inside the tank
Supports constant-pressure vacuum control
Helps maintain pipe outer diameter accuracy
Improves pipe roundness after die forming
Designed for stable water circulation and drainage
Provides reliable calibration before further cooling
Quantity: 2 sets
Tank length: 6 meters each
Used after the vacuum calibration tank
Provides secondary and final pipe cooling
Water-contact parts use stainless steel structure
Spray nozzles distribute cooling water around the pipe
Helps prevent pipe deformation during downstream processing
Supports stable production at different line speeds
Works with the vacuum tank to ensure sufficient cooling length
Improves dimensional stability before cutting and winding

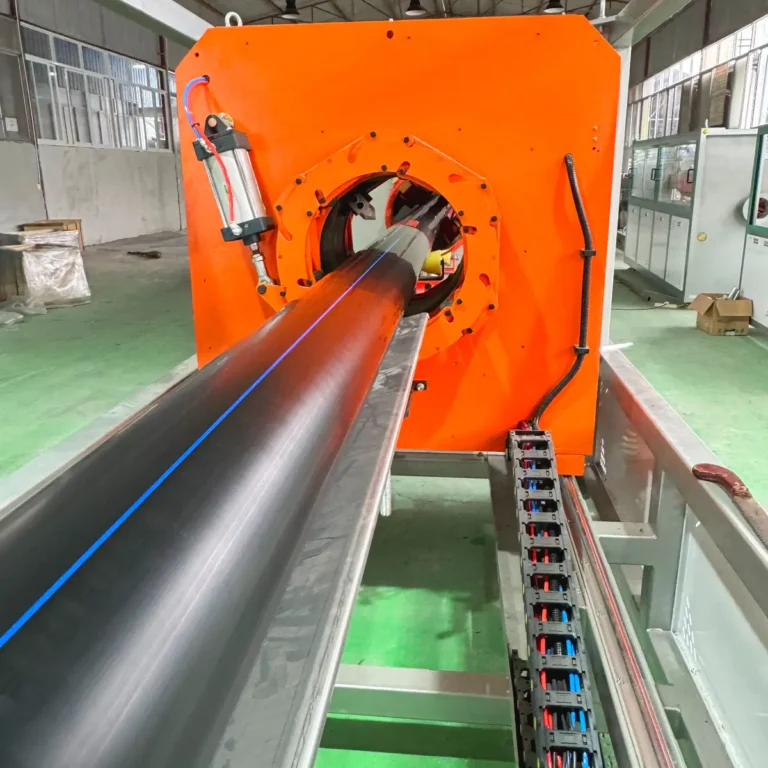

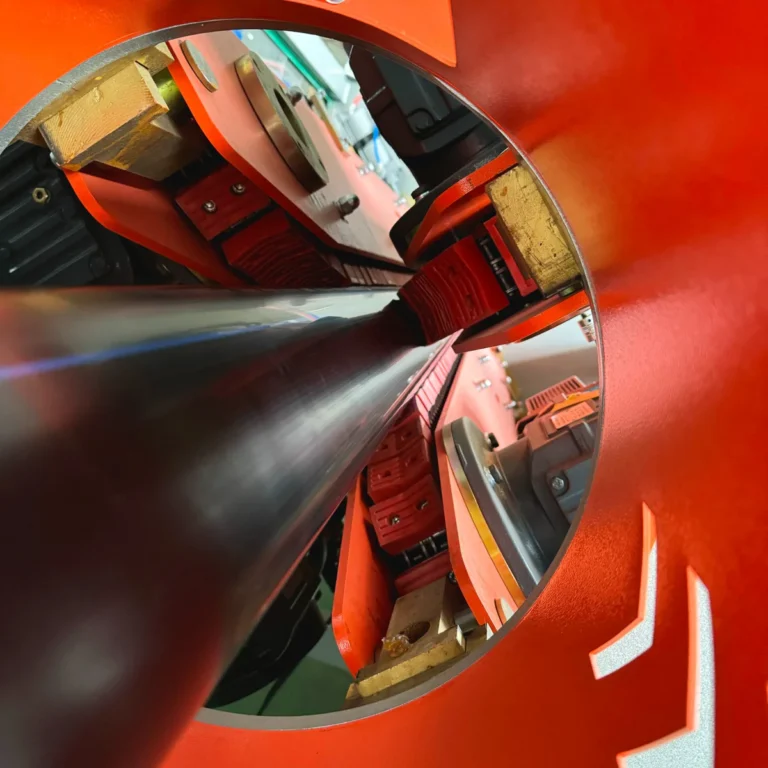

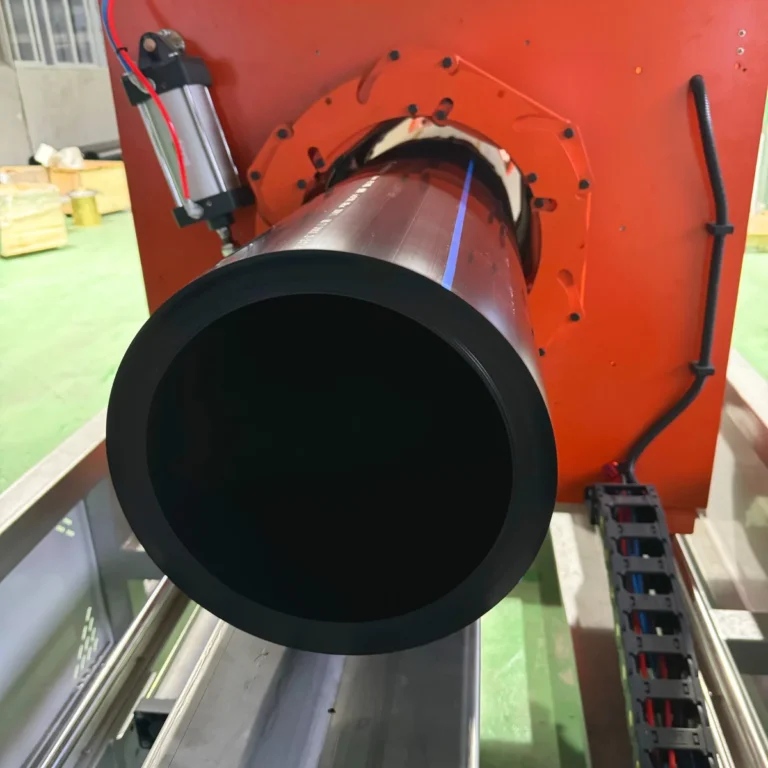

Three-caterpillar traction structure
Servo-controlled haul-off system
Maximum pulling force: 10,000 N
Suitable for Φ20–Φ110 mm pipe production
Provides stable and continuous pipe traction
Helps control wall thickness together with extruder output
Reduces pipe slipping during production
Pneumatic clamping for easier operation
Speed can be adjusted according to pipe size
Supports accurate synchronization with cutting and winding systems

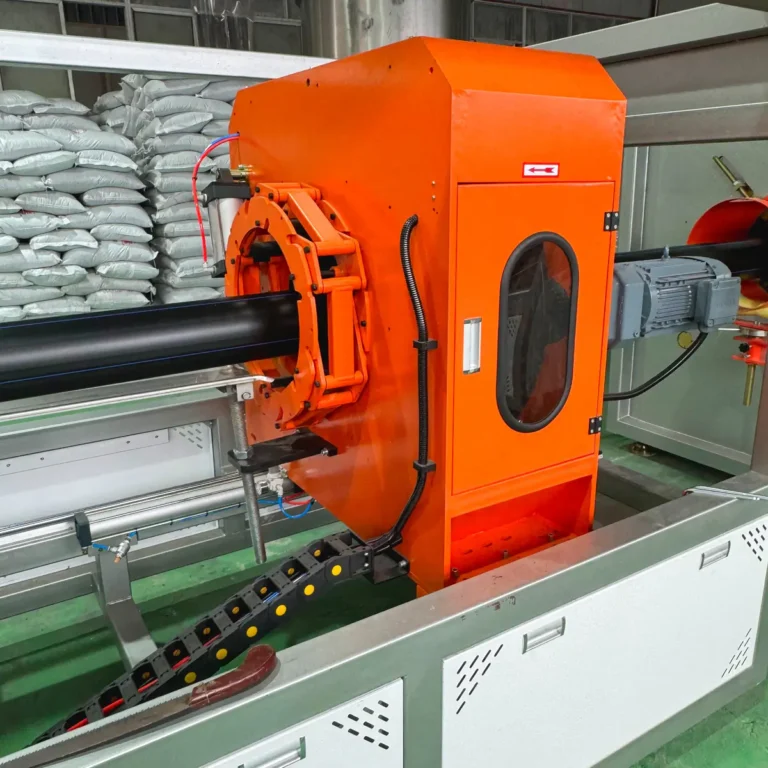

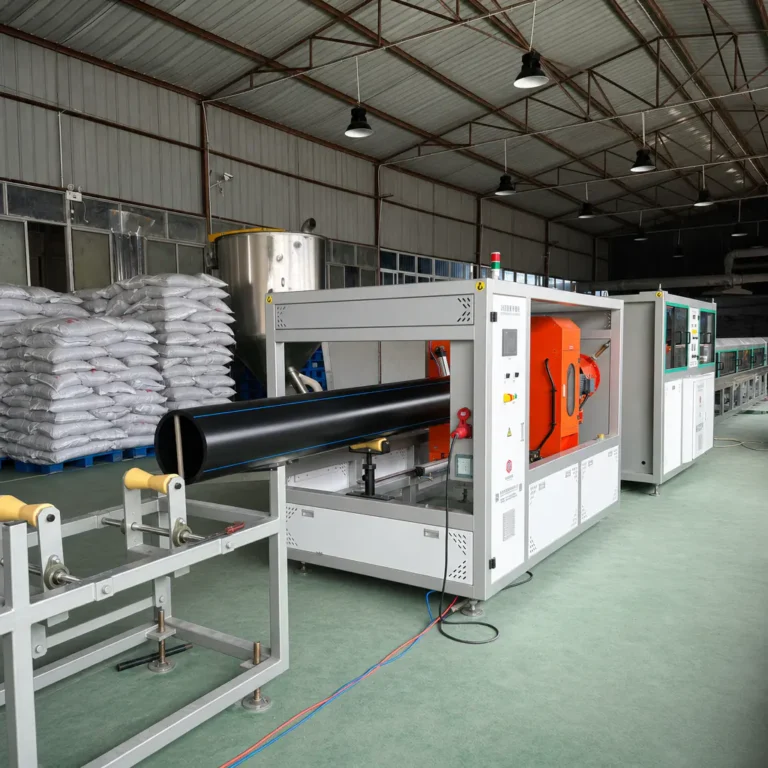

Includes fly-knife cutting function
Includes ring-type chipless cutting function
Suitable for small and medium HDPE pipes
Allows flexible cutting method selection
Helps reduce chips for cleaner production when using chipless mode
Supports synchronized cutting with line speed
Designed for stable cutting length control
Suitable for both straight pipe and coiled pipe preparation
Built with strong machine frame for long-term use
Improves downstream production flexibility

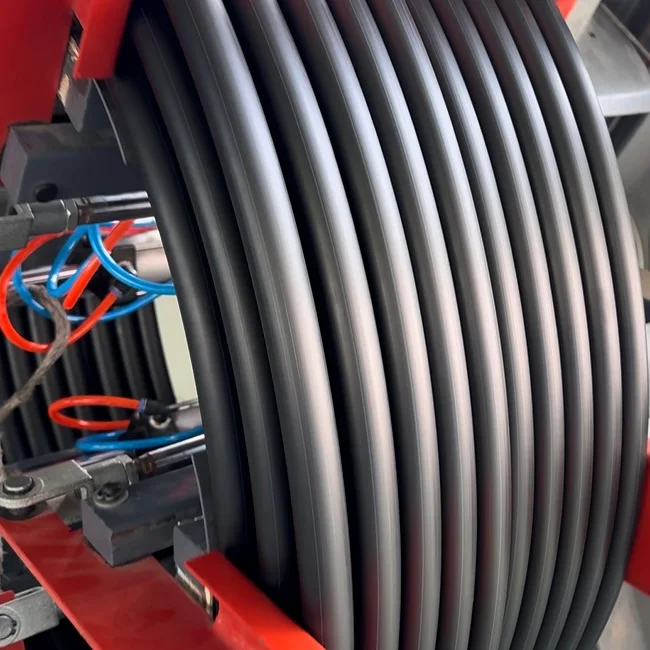

Includes double-station winder for smaller pipe sizes
Suitable for coiling Φ20–Φ63 mm HDPE pipes
Includes single-station winder for larger coiled pipe sizes
Supports pipe winding up to Φ75–Φ110 mm, depending on production requirement
Reduces downtime during coil change
Helps improve finished pipe handling efficiency
Designed for stable winding tension
Suitable for water supply and irrigation pipe markets
Works with haul-off and cutting system
Provides flexible collection for different pipe diameters
Length: 5 meters
Used for straight pipe discharge and collection
Suitable for Φ20–Φ110 mm pipe production
Pneumatic pipe unloading structure
Helps reduce manual pipe handling
Works with the cutting machine
Suitable for standard straight pipe production
Improves finished product organization
Simple mechanical structure for easy maintenance
Provides an alternative to pipe winding for different market needs

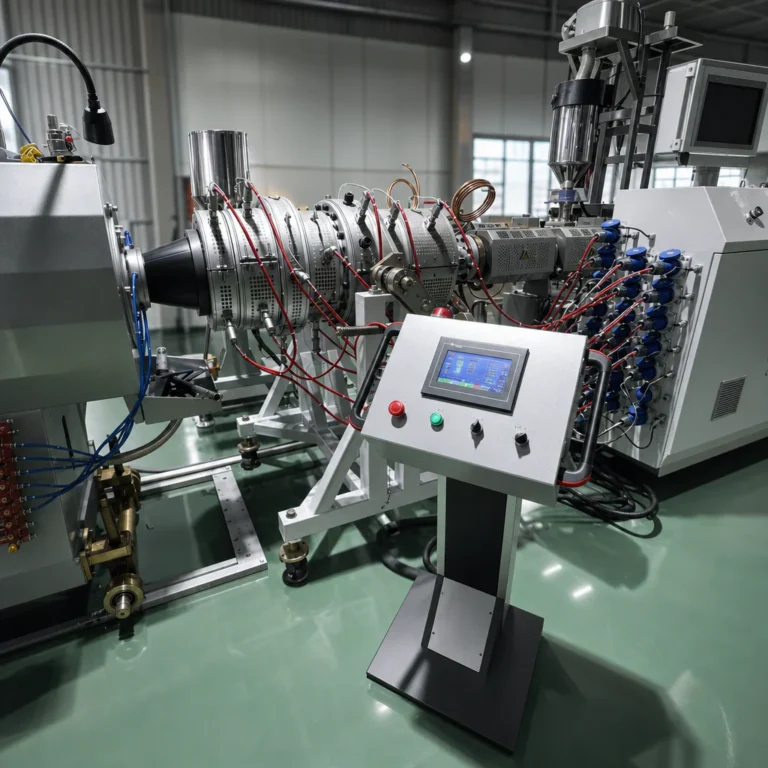

Uses Siemens PLC for centralized control
Equipped with MCGS touchscreen HMI
Uses ABB inverter for speed control
Includes temperature control for extrusion zones
Supports coordinated operation of extruder and downstream units
Easy parameter setting through touchscreen interface
Improves operator convenience
Helps reduce production adjustment time
Designed for stable long-term factory use
Supports the automation level required for modern HDPE pipe extrusion
Includes common wearing parts
Includes key electrical spare components
Provides machine operation guidance
Provides maintenance instructions
Supports installation and commissioning communication
Offers production troubleshooting support
Helps reduce unexpected downtime
Supports long-term equipment operation
Can provide additional spare parts based on future needs
Ensures the customer receives support beyond machine delivery

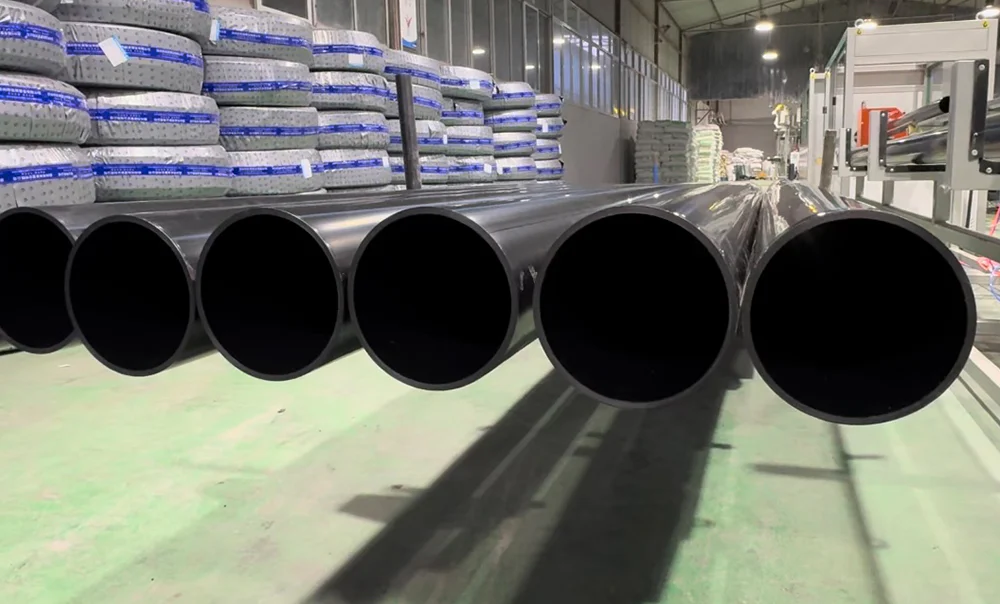

Φ20–Φ110 mm HDPE Pipe Extrusion Line Project by QTech-Machinery
After delivery and installation preparation, the customer received a complete HDPE pipe extrusion line suitable for producing PE water supply pipes from Φ20 mm to Φ110 mm. The line configuration matched the customer’s requirement for output, pipe quality, color marking, production flexibility, and automation.
The project helped the customer establish a practical production system with the following results:
1. Achieved the required pipe diameter range of Φ20–Φ110 mm
2. Supported PE100 HDPE material processing
3. Met the designed capacity of 200–250 kg/h
4. Enabled black pipe production with four color stripes
5. Improved material control through gravimetric metering
6. Maintained stable sizing with 9 m vacuum calibration
7. Ensured enough cooling through two 6 m spray tanks
8. Provided reliable pulling with three-caterpillar servo haul-off
9. Allowed flexible cutting through fly-knife and chipless cutting
10. Supported both coiled pipe and straight pipe production
This case shows how QTech-Machinery helps customers build customized HDPE pipe manufacturing systems based on actual production needs. For buyers looking for an HDPE pipe extrusion line manufacturer in China, this project provides a practical reference for machine configuration, process design, and production planning.
